1714H-33.120G50DTSTK

Overview

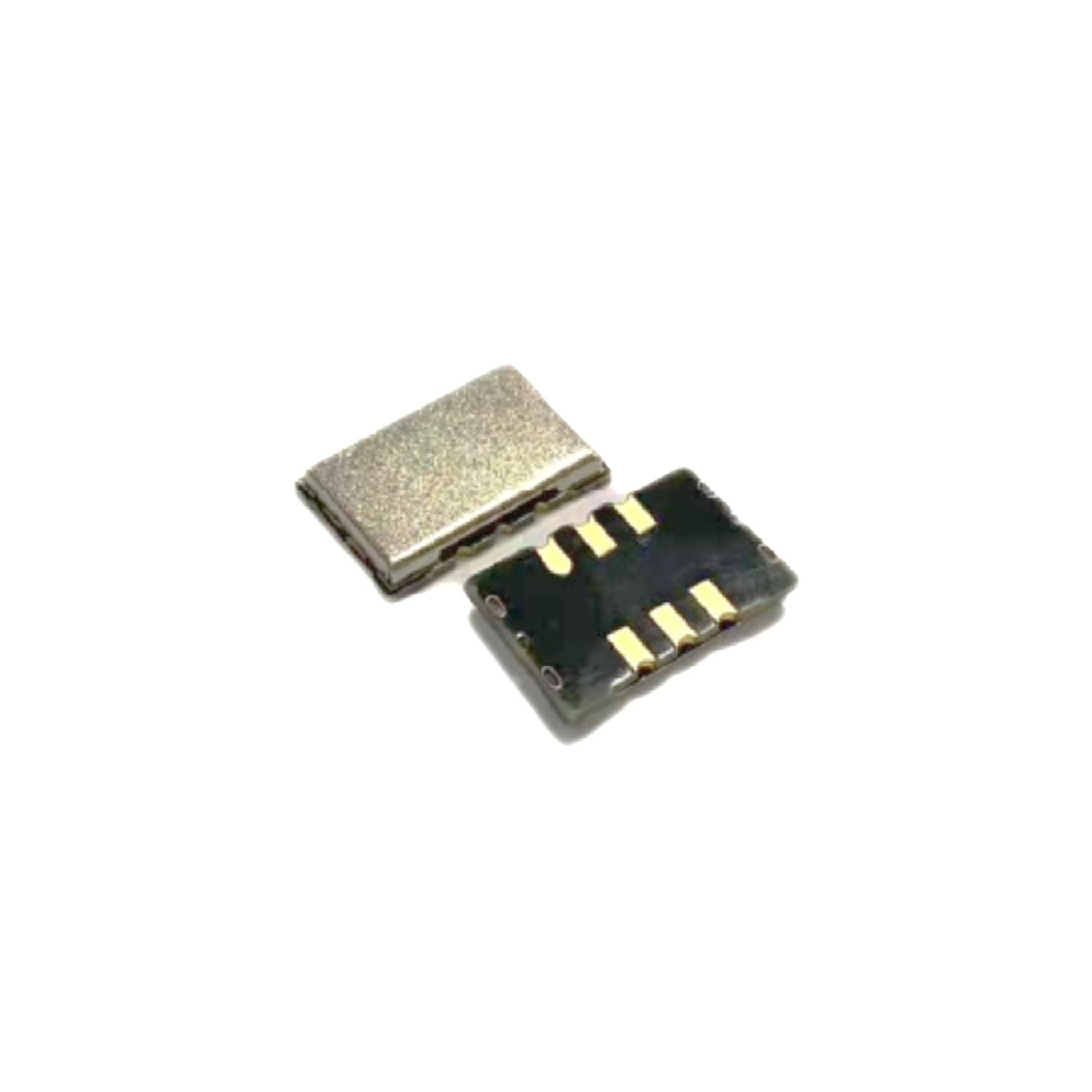

The 1714H-33.120G50DTSTK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a nominal frequency of 33.12 MHz with a base resonator type of crystal. The device utilizes HCMOS output logic and requires a supply voltage of 5V. It features an enable/disable control function for power management. The unit is housed in a 6-SMD, No Lead package with dimensions of 9x14 mm. Frequency stability is rated at ±50 ppm over the operating temperature range of -40°C to +85°C.

Feature Summary

• Integrated enable and disable functionality for controlled power consumption
• Standard HCMOS output signal compatibility
• Robust performance across wide industrial temperature ranges

Applications

• General purpose digital clock generation
• Microcontroller system timing references
• Industrial communication interface synchronization

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm pinout configuration and tolerance grades. Ensure that the 5V supply requirement aligns with the target circuit design. Confirm the physical footprint matches the 9x14mm SMD specification during PCB layout validation to prevent assembly errors.

Selection Notes

Select this component when a 33.12 MHz reference is required with standard CMOS drive levels. The 5V supply voltage distinguishes it from lower voltage alternatives. Consider the ±50 ppm stability limit for applications not requiring high precision. The enable feature offers flexibility for power-sensitive designs compared to always-on oscillators.

Part Context

This model belongs to the 1714H series of surface-mount crystal oscillators produced by Suzhou Hangjing. The series focuses on providing reliable frequency sources for computing and communication equipment. The company specializes in quartz frequency controlling units, offering various packages and frequencies within this product line.

Replacement Considerations

Direct substitutes must match the 33.12 MHz frequency, 5V supply, HCMOS output, and 9x14mm footprint. Verify equivalent stability ratings and enable pin functionality before integration.
