Headers, Receptacles, Female Sockets Overview

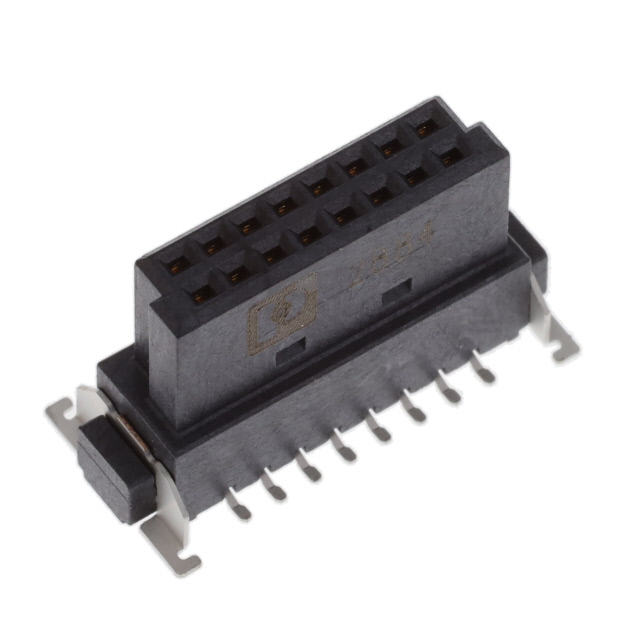

The Phoenix Contact 1715000 is a surface-mount PCB receptacle from the FP 1.27/ 16-FV series. It features a 1.27 mm pitch with 2 rows and 16 contacts. The connector is rated for 500 V and 1.4 A. It utilizes a gold-plated copper contact material and is designed for SMT installation via soldering.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row female socket configuration for board-to-board or wire-to-board interconnects
• Surface mount technology (SMT) design for automated assembly processes
• Gold-plated copper contacts to ensure reliable signal transmission and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• High-density electronic circuit board interconnections
• Industrial control systems requiring robust surface-mount connectors
• Mezzanine board stacking applications

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required housing height and pin length. Confirm RoHS compliance status if restricted substances are a concern. Ensure the selected variant aligns with the intended reflow soldering profile and thermal requirements of the manufacturing process.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 1.27 mm pitch dual-row receptacle is required for surface mounting. Consider the 16-position count and 500 V rating against system voltage and current needs. Evaluate the mechanical footprint and soldering compatibility with the target PCB layout constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the FP 1.27 series, which offers compact board-to-board connectivity solutions. The 1715000 specifically denotes the 16-position, dual-row female socket variant. It is engineered for high-reliability applications in industrial and automation environments where space efficiency is critical.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes within the same FP 1.27 family with different position counts. Verify cross-compatibility with male headers from other Phoenix Contact series that share the 1.27 mm pitch specification.
