1717831-1

Edgeboard Connectors Overview

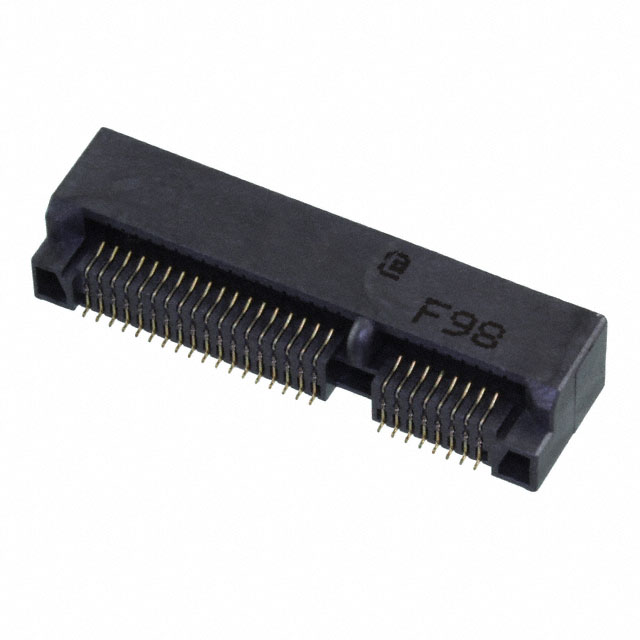

The TE Connectivity AMP Connectors part number 1717831-1 is a semi-hard tray and emboss tape supply Mini PCI Express connector assembly. It features a dual-side card edge interface with 52 contacts designed for surface mount applications. The connector supports right-angle mounting orientation and utilizes a 1 mm pitch specification. This component serves as a female gender receptacle intended for high-density interconnection in electronic systems requiring Mini PCIe standard compliance.

Edgeboard Connectors Feature Summary

• Dual-side contact configuration for enhanced signal integrity
• Right-angle surface mount design for compact board integration
• Semi-hard tray packaging for automated handling

Edgeboard Connectors Applications

• Mini PCI Express module interconnection
• mSATA device connectivity
• High-density electronic system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the semi-hard tray packaging aligns with your assembly line requirements. Ensure the right-angle orientation matches your PCB layout constraints. Cross-reference the 52-contact count with your design specifications to guarantee functional compatibility.

Edgeboard Connectors Selection Notes

Select this component when a dual-side Mini PCI Express interface is required for surface mount applications. The right-angle form factor facilitates space-constrained designs. Verify that the 1 mm pitch and 52-contact count match the target card specifications. Consider the semi-hard tray supply method if automated placement equipment is utilized in the manufacturing process.

Edgeboard Connectors Part Context

This connector belongs to the Mini PCI Express and mSATA product family from TE Connectivity. It provides a standardized solution for connecting peripheral cards to host systems. The design adheres to industry specifications for miniaturized expansion slots, ensuring reliable electrical performance in portable and industrial computing environments.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Generic equivalents may not match the specific semi-hard tray packaging or dual-side contact geometry. Validate mechanical dimensions and electrical characteristics against the original datasheet before substitution.
