1717831-2

Edgeboard Connectors Overview

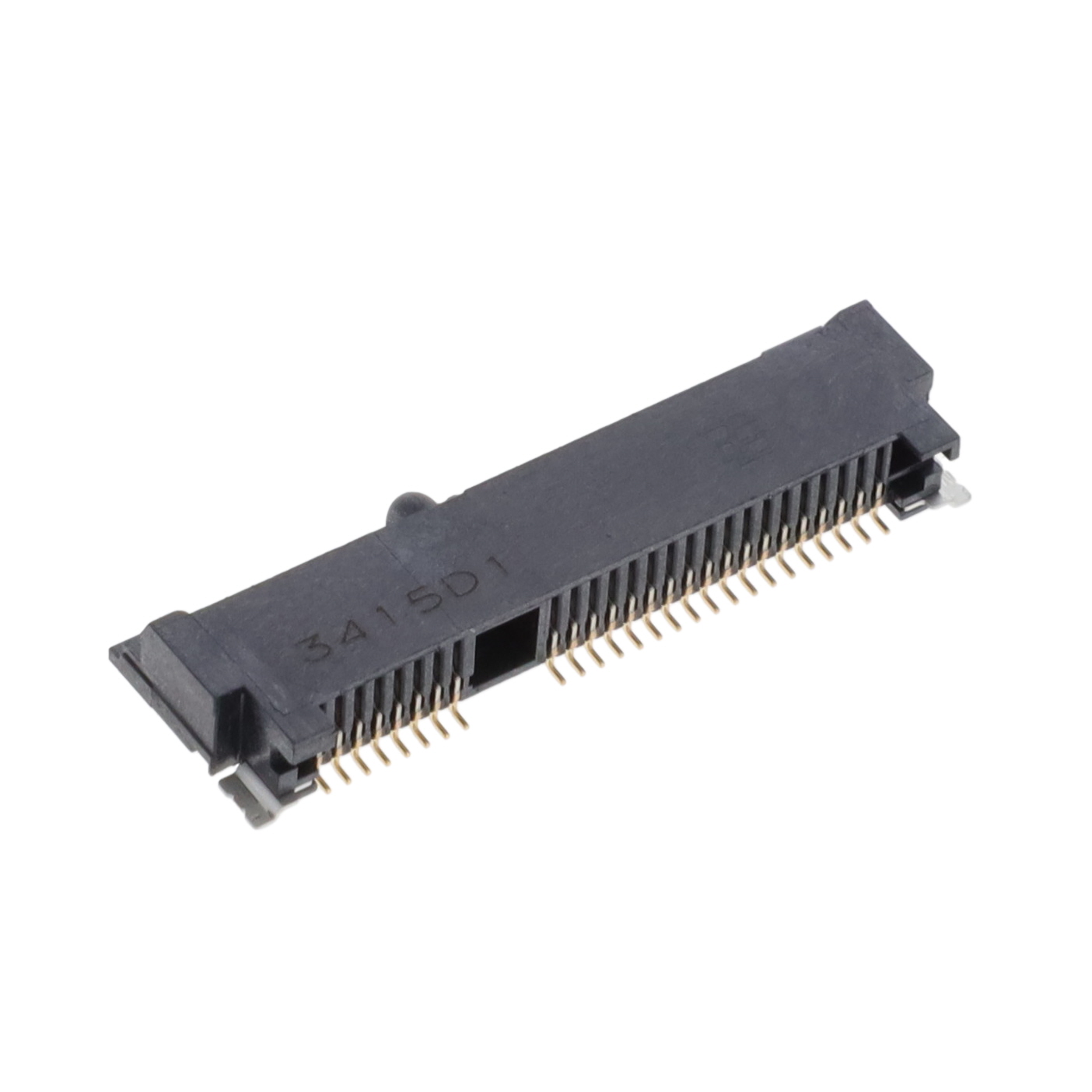

The TE Connectivity AMP Connectors model 1717831-2 is a Mini PCI Express connector assembly designed for edge board applications. It features a female configuration with 52 positions, utilizing gold plating on the contacts to ensure reliable signal transmission. The connector is engineered for a board thickness of 0.031 inches (0.80mm) and includes a latch mechanism for secure retention. The housing is black, providing visual identification and standard industrial aesthetics suitable for high-density electronic interconnects.

Edgeboard Connectors Feature Summary

• Mini PCI Express form factor for compact system integration
• Female contact configuration with gold-plated terminals
• Integrated latch mechanism for secure board retention
• Designed for 0.031-inch board thickness compatibility

Edgeboard Connectors Applications

• Mini PCI Express card slot implementation
• Edge board connectivity in embedded systems
• High-density expansion interface modules
• Industrial computing hardware interconnects

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status and specific packaging requirements such as semi-hard tray or emboss tape supply before ordering. Confirm that the selected variant matches the required board thickness and pin count specifications. Ensure that the procurement channel provides valid manufacturer documentation to validate authenticity and technical parameters against official datasheets.

Edgeboard Connectors Selection Notes

Select this component when a Mini PCI Express female connector with a latching feature is required for edge board applications. Consider the 52-position layout and gold contact plating for signal integrity needs. Evaluate the mechanical fit for 0.031-inch boards and verify compatibility with existing PCB footprint designs. Assess environmental ratings if operating in harsh conditions.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors family, specifically within the Mini PCI Express series. It serves as a critical interconnect solution for expanding system capabilities via standardized peripheral cards. The design supports modern computing architectures requiring compact, high-reliability connections for data and power transfer in constrained spaces.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and electrical specifications against alternative Mini PCI Express connectors from other manufacturers to ensure functional equivalence before substitution.
