1718560008

Headers, Male Pins Overview

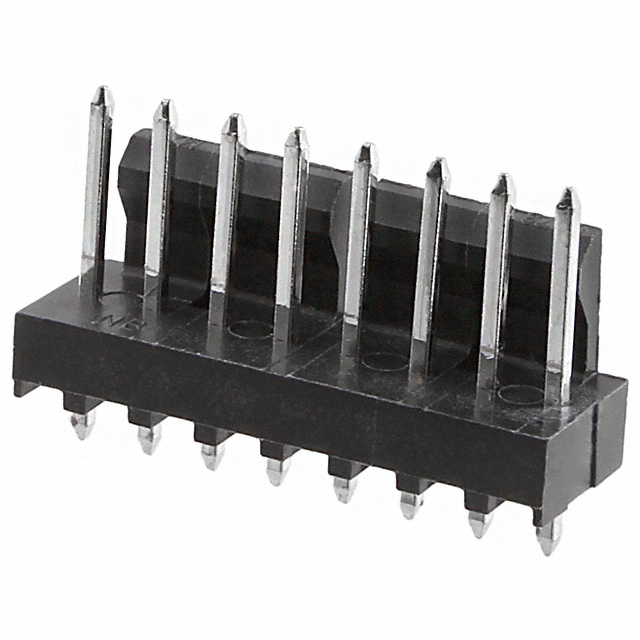

The Molex 1718560008 is a KK 2.54mm series header featuring eight positions in a single row. Designed for through-hole mounting, it utilizes straight male pin contacts with tin plating over brass. The connector supports a maximum current rating of 4A per contact and operates within a temperature range of -40°C to +105°C. It employs a friction lock mechanism for secure mating and meets UL 94 V-1 flammability standards.

Headers, Male Pins Feature Summary

• Friction locking design ensures secure wire-to-board connections
• Tin-plated brass contacts provide reliable conductivity
• Through-hole termination facilitates PCB integration

Headers, Male Pins Applications

• Wire-to-board interconnects
• General electronic equipment
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Molex documentation to confirm pin count and series alignment. Ensure compatibility with corresponding housing components for proper assembly. Check RoHS compliance status directly from the manufacturer's datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring standard 2.54mm spacing with through-hole termination. Confirm that the 4A current rating and 500V voltage limit meet circuit requirements. Verify that the straight body orientation fits the available PCB space constraints.

Headers, Male Pins Part Context

This part belongs to the Molex KK 2.54mm family, widely used for general-purpose interconnects. The 171856 series specifically offers locking headers designed for reliable signal and power transmission in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other KK 2.54mm series headers from Molex with matching pin counts and locking features. Cross-reference dimensions and electrical ratings before substitution.
