1719771108

Headers, Male Pins Overview

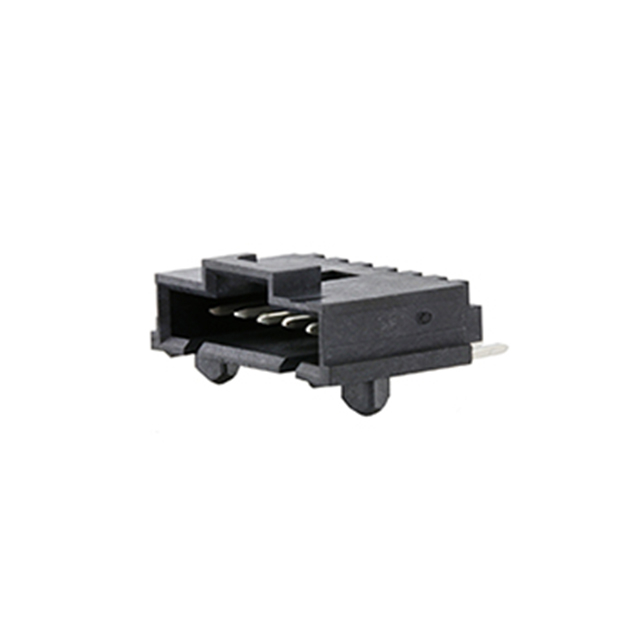

The Molex 1719771108 is a surface mount header connector featuring an 8-position configuration with a 2.54mm pitch. It utilizes LCP material for the housing and employs a right-angle design to facilitate compact circuit board layouts. The component is classified as a shrouded header with four-sided protection, ensuring secure mating and alignment during assembly.

Headers, Male Pins Feature Summary

• Right-angle surface mount construction
• Four-sided shrouded housing design
• LCP insulator material

Headers, Male Pins Applications

• Compact electronic assemblies requiring right-angle connections
• Surface mount PCB integration
• High-density interconnect applications

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required eight-position count and right-angle orientation. Confirm the shrouded design aligns with the intended mating connector profile. Ensure the surface mount footprint corresponds to the manufacturer's recommended land pattern for reliable soldering.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is necessary to save vertical space on the printed circuit board. The four-sided shrouding provides mechanical stability and prevents misalignment during insertion. Verify compatibility with mating connectors designed for 2.54mm pitch headers.

Headers, Male Pins Part Context

This connector belongs to the SL series of headers manufactured by Molex. It is designed for general-purpose electronic applications where reliable signal transmission is required. The single-row configuration simplifies routing while maintaining a standard pitch for broad industry compatibility.

Headers, Male Pins Replacement Considerations

Ensure any substitute maintains the same 2.54mm pitch, eight-position count, and right-angle orientation. Verify that the replacement also features a four-sided shrouded design and compatible LCP material properties for thermal resistance.
