1720503064

Edgeboard Connectors Overview

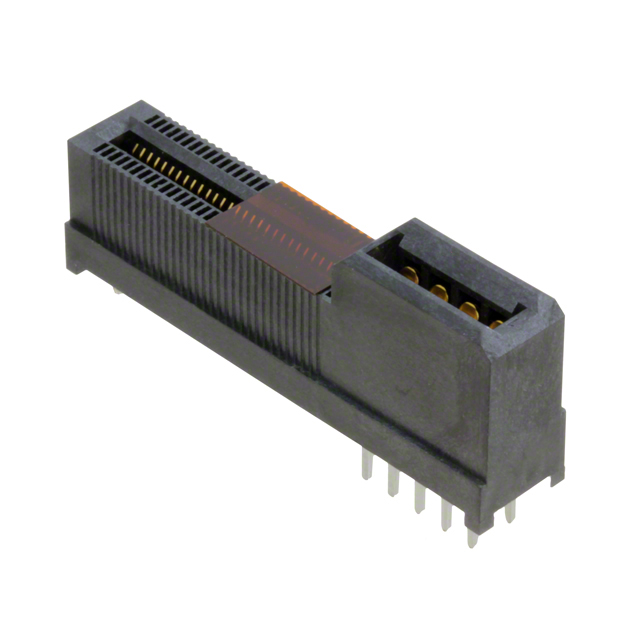

The Molex 1720503064 is an EdgeLine+ ESP vertical card edge connector designed for high-speed data transmission. It features a dual female configuration with 66 total positions, comprising 64 signal circuits and 2 dedicated power circuits. The connector utilizes a 0.75mm pitch and supports a PCB thickness of 1.57mm. Rated for 15 Gbps data rates, it incorporates a 40.0A power module capability. The contacts are gold-plated, and the housing is black, ensuring reliable electrical performance in demanding electronic applications.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission up to 15 Gbps
• Integrates dedicated high-current power modules alongside signal lines
• Vertical mounting design compatible with standard PCB thicknesses

Edgeboard Connectors Applications

• High-performance computing systems requiring fast data throughput
• Industrial control boards needing robust power delivery
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to ensure compatibility with required PCB thickness and contact plating specifications. Confirm that the selected variant matches the intended signal integrity requirements and current load capacity before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing systems that require both high-bandwidth signal connectivity and substantial power handling within a compact vertical form factor. Ensure the host PCB layout accommodates the 0.75mm pitch and 1.57mm board thickness constraints specified by the manufacturer.

Edgeboard Connectors Part Context

This part belongs to the Molex EdgeLine+ ESP series, which focuses on enhanced signal performance and power density. It serves as a critical interconnect solution for modern electronics where space efficiency and high-speed data reliability are paramount design considerations.

Edgeboard Connectors Replacement Considerations

Consult the official Molex cross-reference guide for verified substitute part numbers. Do not assume mechanical or electrical interchangeability with other brands without validating pinout, pitch, and current rating specifications.
