1720503178

Edgeboard Connectors Overview

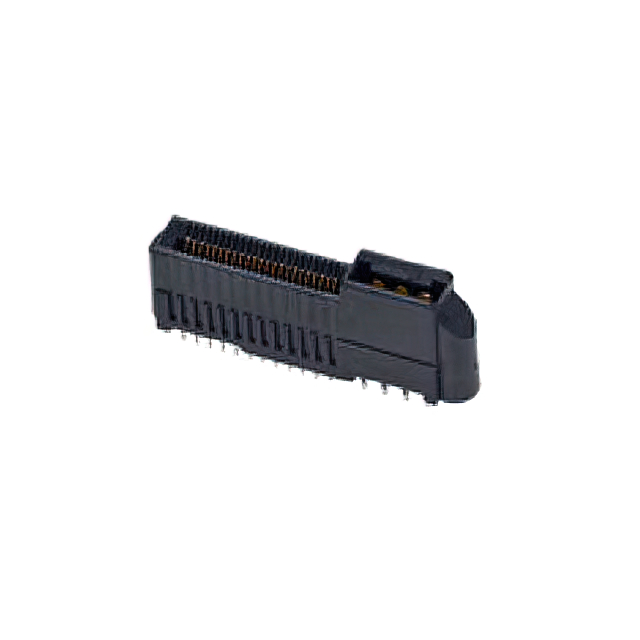

Molex part number 1720503178 is a Card Edge Connector from the EdgeLine High-Speed Connectors series. It features a dual female configuration with 178 circuits loaded and a maximum of 178.0 circuits. The connector utilizes black resin and is designed for edge board mounting applications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for high-speed signal transmission
• Designed for edge board mounting on printed circuit boards
• Constructed with black resin housing material

Edgeboard Connectors Applications

• High-speed data interface connections
• Edge board mounting in electronic assemblies
• Signal transmission modules requiring dual female contacts

Edgeboard Connectors Procurement Notes

Verify the current product status, as sources indicate this specific part may be discontinued or obsolete. Confirm availability through authorized Molex distributors or official channels before finalizing procurement plans to ensure supply chain continuity.

Edgeboard Connectors Selection Notes

Select this component when a dual female card edge connector with 178 circuits is required. Ensure compatibility with the specified PCB thickness recommendation of 2.79mm. Verify that the EdgeLine series meets the high-speed performance requirements of the target application.

Edgeboard Connectors Part Context

This component belongs to the EdgeLine High-Speed Connectors series by Molex. It is categorized under Card Edge Connectors, specifically designed for robust interconnection solutions in demanding electronic environments where high-speed data integrity is critical.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Molex official resources for potential obsolescence management or alternative series recommendations.
