Headers, Male Pins Overview

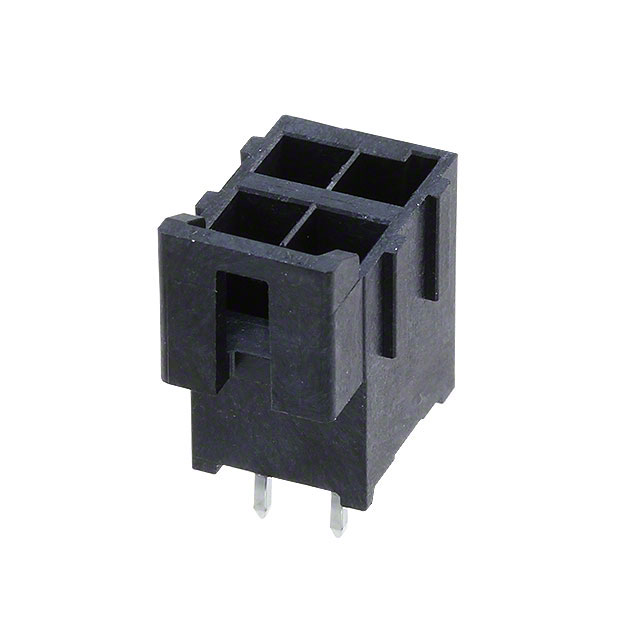

The Molex 172298-1104 is a high-density Ultra-Fit power connector header designed for wire-to-board applications. It features a through-hole mounting style with four positions and a 3.50mm (0.138-inch) pitch. The component utilizes male pin contacts to ensure secure electrical connections within compact assemblies.

Headers, Male Pins Feature Summary

• High-density design optimizes space savings in electronic assemblies
• Eliminates same-circuit-size cross-mating risks
• Reduces terminal back-out for improved connection reliability
• Color-coded housings mitigate mating errors

Headers, Male Pins Applications

• Compact consumer electronics assembly
• Industrial control system wiring
• Automotive internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the exact part number suffix against official Molex documentation to confirm contact plating, housing material, and orientation specifications. Ensure compatibility with mating Ultra-Fit power housings before procurement. Cross-reference datasheets for environmental ratings and termination requirements.

Headers, Male Pins Selection Notes

Select this component when space optimization and reliable power delivery are critical. The 3.50mm pitch balances density and current capacity. Verify that the application environment supports the connector's thermal and mechanical limits. Confirm that mating connectors match the Ultra-Fit series specifications.

Headers, Male Pins Part Context

This header belongs to the Ultra-Fit Power Connectors family, which combines premium housing features from Mini-Fit and Micro-Fit systems. The series is engineered for high-reliability power transmission in dense configurations, offering robust performance across various industrial and commercial sectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
