1733000114

Edgeboard Connectors Overview

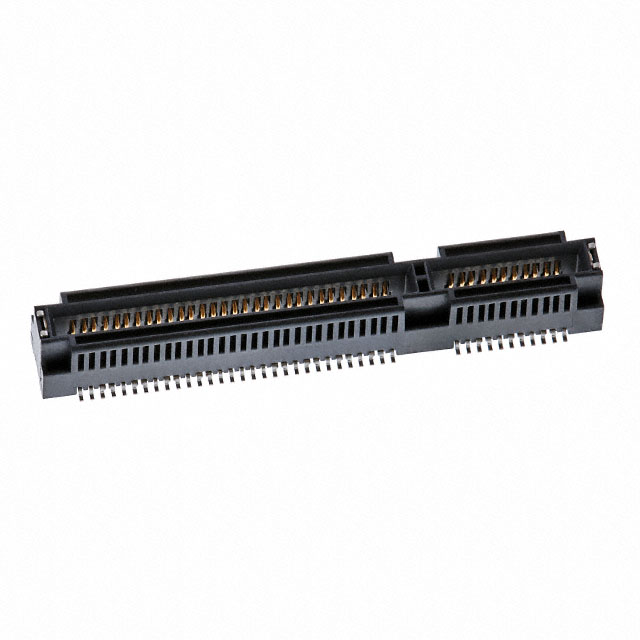

The Molex 1733000114 is a SpeedEdge vertical receptacle connector designed for board-to-board and mezzanine applications. It features an 82-position dual-edge configuration with a 0.80mm pitch. The component utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer (LCP). Key dimensions include a 5.60mm height and support for a 1.57mm PCB thickness. It offers surface mount termination with UL94V-0 flammability rating.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for high-density interconnects
• Vertical orientation optimized for compact board-to-board stacking
• Gold-plated contacts ensure reliable signal transmission
• Liquid crystal polymer insulation provides thermal stability

Edgeboard Connectors Applications

• High-speed data communication equipment
• Mezzanine card interconnections
• Board-to-board connections in compact electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin count, plating thickness, and packaging type. Ensure compatibility with mating header part numbers within the SpeedEdge family. Check moisture sensitivity levels and reflow soldering profiles against assembly requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high I/O density in limited vertical space. The 0.80mm pitch supports numerous circuits in a small footprint. Verify that the target PCB thickness aligns with the connector's design specifications for proper retention and electrical performance.

Edgeboard Connectors Part Context

This part belongs to the Molex SpeedEdge 173300 series, a system of edge-card and mezzanine connectors. The series is engineered for cost-effective, flexible solutions requiring high speeds and small footprints. It serves as a receptacle counterpart to matching headers in the same ecosystem.

Edgeboard Connectors Replacement Considerations

Compatible mating parts are found within the Molex SpeedEdge 173300 series. Verify pitch, row count, and contact gender when selecting substitutes or mating components from other manufacturers.
