1759503-1

Edgeboard Connectors Overview

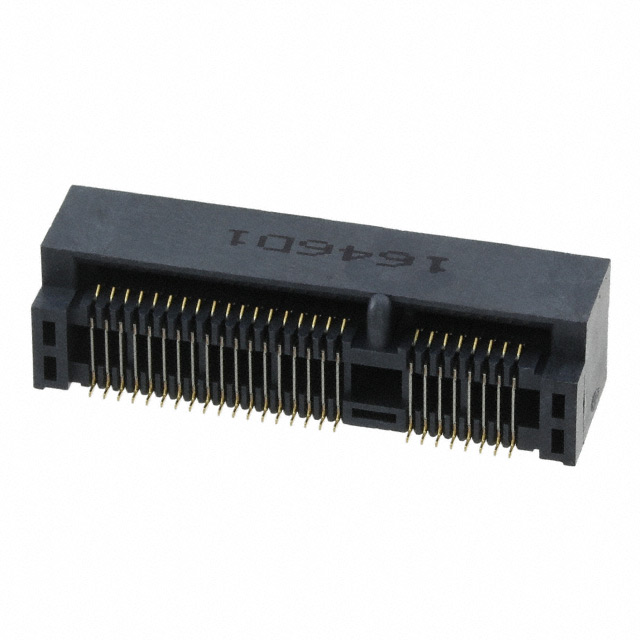

The TE Connectivity AMP Connectors model 1759503-1 is a card edge connector designed for the mini PCI Express (PCI-E) standard. It features a dual-side contact configuration with 52 positions arranged in two rows. The connector utilizes a 0.8 mm pitch and is intended for surface mount installation. It accepts Mini PCIe Type I cards and employs gold-plated phosphor bronze contacts housed in a black liquid crystal polymer body.

Edgeboard Connectors Feature Summary

• Supports dual-side contact engagement for reliable signal transmission
• Designed specifically for Mini PCI Express Type I card applications
• Utilizes gold plating on contacts to ensure corrosion resistance

Edgeboard Connectors Applications

• Mini PCI Express module interconnection
• Wireless LAN card integration
• Solid State Drive (SSD) expansion slots
• Mobile broadband device connections

Edgeboard Connectors Procurement Notes

Verify that the specific variant matches the required orientation, as sources indicate both right-angle and straight configurations exist within this part number context. Confirm RoHS compliance status through official documentation. Ensure the selected component aligns with the specific PCB layout requirements for surface mount technology.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface is required for Mini PCI Express modules. The 0.8 mm pitch dictates compatible board spacing. Verify that the housing material meets thermal requirements for the operating environment. Consider the mechanical stability provided by the surface mount design during vibration.

Edgeboard Connectors Part Context

This component belongs to the mini PCI-E series of connectors manufactured by TE Connectivity. It serves as a critical interface between the motherboard and peripheral cards. The design adheres to industry standards for compact electronic devices requiring high-density connectivity.

Edgeboard Connectors Replacement Considerations

Cross-reference with other manufacturers offering dual-row 52-position Mini PCI-E connectors. Ensure identical 0.8 mm pitch and pinout compatibility before substitution.
