Edgeboard Connectors Overview

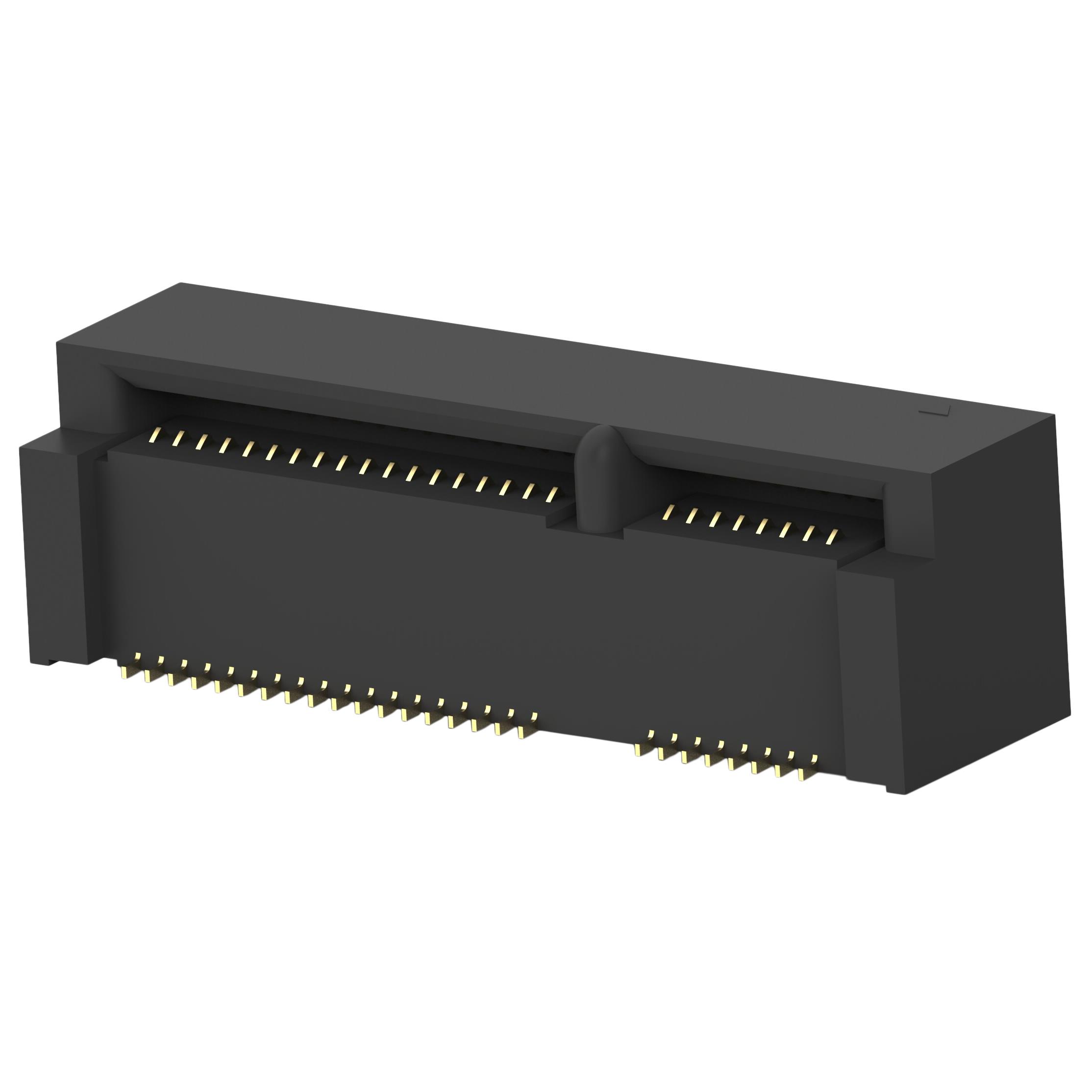

The TE Connectivity AMP Connectors part number 1759513-1 is a 52-position female edge connector designed for Mini PCI Express and mSATA standards. It features a 0.8 mm pitch and a 9 mm profile height. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. This component supports board mounting and operates within a temperature range of -55°C to 85°C. It complies with RoHS standards.

Edgeboard Connectors Feature Summary

• Supports both Mini PCI Express and mSATA card standards
• Gold-plated contacts for enhanced conductivity
• 9 mm profile height design
• RoHS compliant construction

Edgeboard Connectors Applications

• Mini PCI Express card interfaces
• mSATA storage device connections
• Edge card slot implementations
• Board-to-card interconnects

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for precise mechanical dimensions and mating force requirements. Confirm that the 9 mm height specification aligns with your enclosure constraints. Ensure compatibility with standard Mini PCIe and mSATA card keying configurations before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-standard solution for Mini PCIe and mSATA is required. The 9 mm height offers a compact form factor suitable for space-constrained designs. Verify that the 0.8 mm pitch matches your PCB layout and that the female contact type accommodates the intended card header specifications.

Edgeboard Connectors Part Context

This component belongs to the Mini PCI Express series by TE Connectivity. It serves as a critical interface element in portable electronics and industrial computing systems where high-density data transfer is necessary. The design integrates robust mechanical stability with electrical reliability for frequent insertion cycles.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 52-pin count, 0.8 mm pitch, and 9 mm height. Verify identical support for both Mini PCIe and mSATA standards. Ensure the replacement maintains the same gold plating and RoHS compliance for regulatory adherence.

Edgeboard Connectors FAQ

Does this connector support both Mini PCIe and mSATA?

Yes, the 1759513-1 is designed to support both Mini PCI Express and mSATA card standards.

What is the contact material and plating?

The contacts are made of copper alloy with gold plating to ensure reliable performance.
