176139-1

Edgeboard Connectors Overview

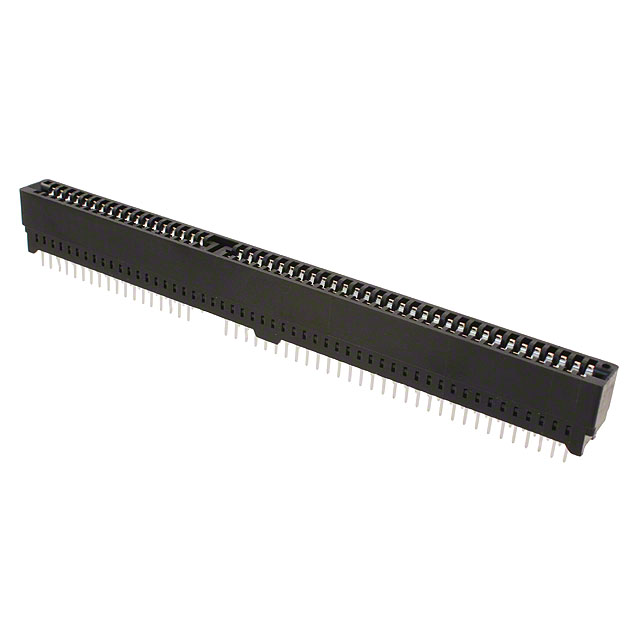

The TE Connectivity AMP Connectors part number 176139-1 is a standard card edge connector belonging to the SEC II series. It features a dual configuration with 49 positions and a 0.100 inch (2.54 mm) pitch. The connector utilizes a press-fit termination method for through-hole mounting on printed circuit boards. Constructed from phosphor bronze contacts, it is designed for reliable signal transmission in industrial applications.

Edgeboard Connectors Feature Summary

• Dual row configuration supporting high-density board-to-board interconnects
• Press-fit termination ensures secure mechanical attachment without soldering
• Robust construction using phosphor bronze contact materials

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment backplanes
• Computing hardware motherboards and expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to ensure correct orientation and mating compatibility. Confirm that the procurement channel provides genuine components with traceable manufacturing records. Check for any recent product change notices or lifecycle status updates directly from the manufacturer before finalizing orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 49-position card edge interface is required. Ensure the mating card thickness aligns with the connector's design specifications. Verify that the press-fit installation process matches the target PCB assembly capabilities. Consider environmental ratings if the application involves extreme temperatures or vibration.

Edgeboard Connectors Part Context

This connector belongs to the SEC II family of standard card edge connectors. The series is known for providing reliable connections in demanding environments. The 176139-1 variant specifically addresses needs for dual-row configurations with a standard 2.54mm pitch, fitting within TE Connectivity's broader portfolio of electronic interconnection solutions.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity resources for direct cross-reference data. No public substitute part numbers are confirmed in the provided source material.
