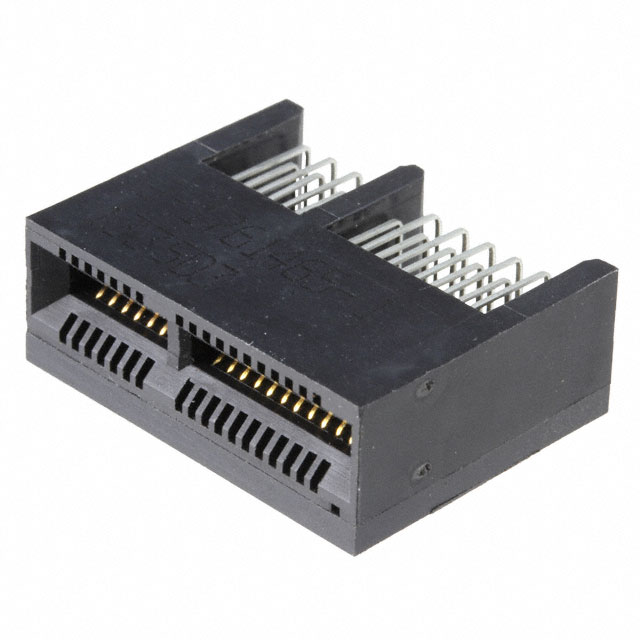

1761465-1

$6.47

Description：CONN PCI EXP FMALE 36POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:657c9739d82e Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1761465-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 36POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 1761465-1

Description：CONN PCI EXP FMALE 36POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：36
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 1761465-1

1761465-1

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 1761465-1 is a dual-side card edge connector designed for PCI Express applications. It features 36 positions with a 0.039 inch (1.00 mm) pitch. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. The connector supports through-hole mounting and accommodates a card thickness of 1.57 mm. It operates within a temperature range of -40°C to 85°C.

Edgeboard Connectors Feature Summary

Dual-side contact configuration for enhanced connectivity
Gold-plated copper alloy contacts for durability
Designed specifically for PCI Express standards

Edgeboard Connectors Applications

PCI Express peripheral connections
High-speed data interface modules
Industrial computing backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to ensure correct plating thickness and mating force specifications. Confirm that the procurement order matches the exact 36-position dual-side requirement. Cross-reference the datasheet revision date to ensure compliance with current manufacturing standards before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-density interconnect is required for PCI Express implementations. Ensure the PCB design accommodates the 1.00 mm pitch and through-hole termination style. Verify that the host system's card thickness aligns with the 1.57 mm specification to guarantee proper mechanical retention and electrical contact stability during operation.

Edgeboard Connectors Part Context

This component belongs to the AMP series of card edge connectors from TE Connectivity. It is engineered for robust performance in demanding electronic environments. The design focuses on maintaining signal integrity while providing secure mechanical coupling between the printed circuit board and the mating card edge.
