1761465-3

Edgeboard Connectors Overview

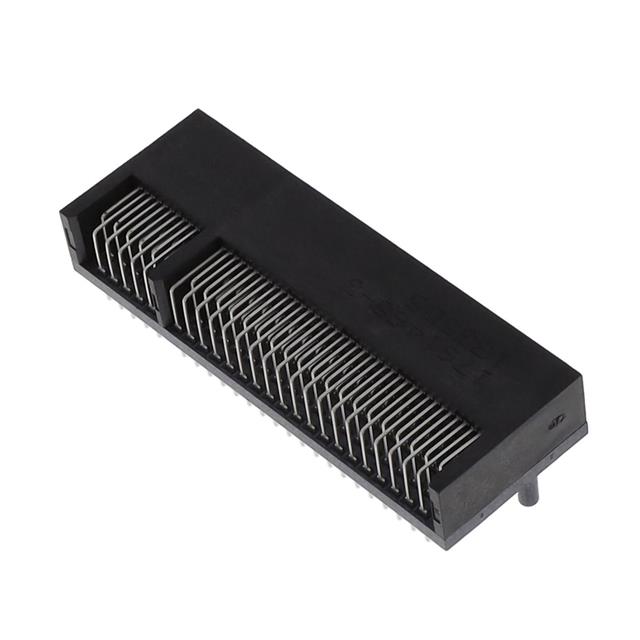

The TE Connectivity AMP Connectors part number 1761465-3 is a PCI Express card edge connector designed for through-hole, right-angle mounting. It features 98 positions with a contact pitch of 0.039 inches (1.00 mm). The contacts are made from copper alloy and are gold-plated to ensure reliable signal transmission. This component is specifically engineered for high-speed data applications requiring robust mechanical stability and electrical performance in PCI Express systems.

Edgeboard Connectors Feature Summary

• Right-angle through-hole mounting configuration for efficient board space utilization
• Gold-plated copper alloy contacts ensuring low contact resistance and corrosion resistance
• Designed specifically for PCI Express standard compliance and signal integrity

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-speed data interface modules
• Computer peripheral hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix and packaging details against the official datasheet before ordering, as availability may vary. Confirm that the right-angle orientation and 98-position count match your PCB layout requirements precisely. Ensure compatibility with the corresponding card edge thickness specifications defined by the manufacturer.

Edgeboard Connectors Selection Notes

Select this connector when a right-angle, through-hole PCI Express interface is required. The 0.039-inch pitch is standard for many legacy and current PCIe implementations. Consider the mechanical height and locking features if securing the card is critical for your application's vibration environment.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors family of card edge connectors. It is part of the broader portfolio designed for computing and communication infrastructure. The 1761465 series generally includes various configurations tailored for different slot depths and mating heights within the PCI Express ecosystem.

Edgeboard Connectors Replacement Considerations

Check for direct cross-reference part numbers from TE Connectivity or authorized distributors. Ensure any substitute maintains the same 98-position count, 1.00mm pitch, and right-angle through-hole mounting style to guarantee mechanical and electrical compatibility.
