1761465-4

Edgeboard Connectors Overview

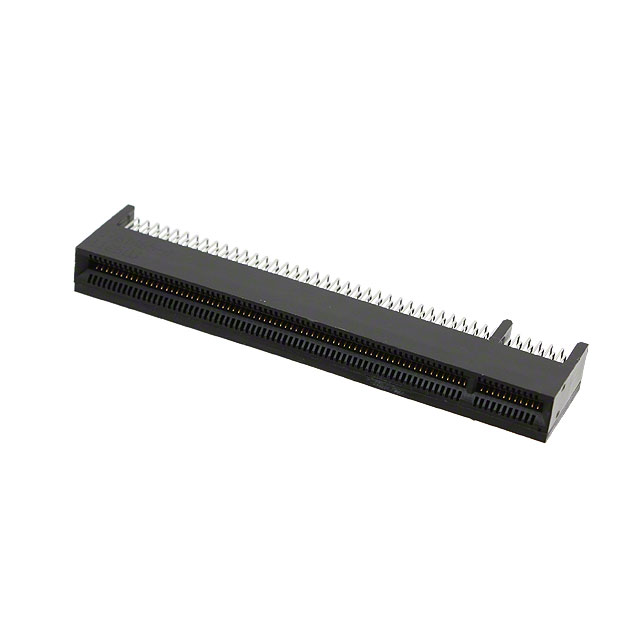

The TE Connectivity AMP Connectors part number 1761465-4 is a PCI Express female card edge connector assembly. It features 164 positions with a contact pitch of 0.039 inches (1.00mm). The component utilizes a through-hole right-angle mounting style, designed for secure attachment to printed circuit boards. This connector supports high-speed data transmission applications typical of PCIe standards.

Edgeboard Connectors Feature Summary

• Female card edge interface for PCI Express expansion cards
• Through-hole right-angle mounting configuration
• 164-position layout with 0.039 inch pitch

Edgeboard Connectors Applications

• PCI Express expansion card interconnects
• Motherboard or backplane connections
• High-speed data transmission systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's current datasheet to ensure compatibility with your design requirements. Confirm that the through-hole right-angle form factor matches your PCB layout constraints. Check for any recent product change notices or obsolescence alerts from TE Connectivity before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a female PCI Express card edge connector with a 164-position count is required. Ensure the 0.039 inch pitch aligns with the mating card specifications. The right-angle through-hole design must fit within the available vertical clearance on the target board. Validate electrical ratings against system power and signal integrity needs.

Edgeboard Connectors Part Context

This connector belongs to the PCI Express / PCI Connectors category within the TE Connectivity AMP Connectors portfolio. It serves as a critical interface between peripheral expansion cards and host systems. The 1761465 series represents standardized solutions for reliable high-speed digital communication in computing and networking hardware environments.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for direct replacements. Verify pinout compatibility and mechanical dimensions if considering alternative suppliers. Ensure any substitute maintains the same 164-position count and right-angle through-hole mounting style.
