1761468-1

Edgeboard Connectors Overview

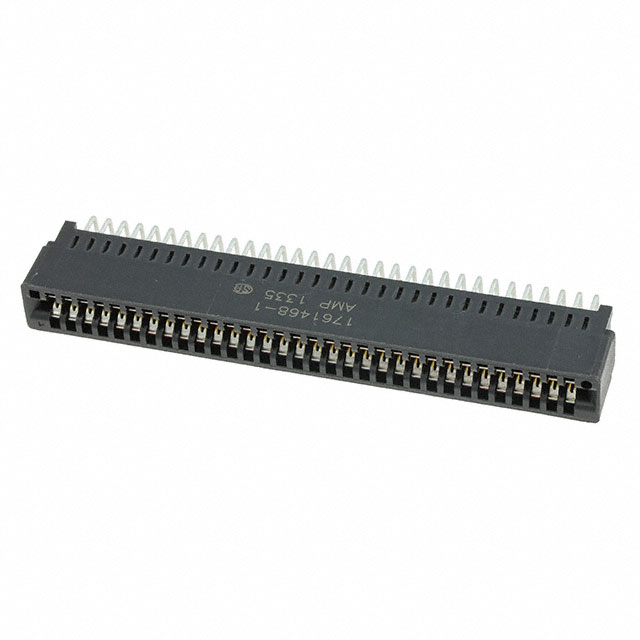

The TE Connectivity AMP Connectors part number 1761468-1 is a standard card edge connector assembly designed for high-current applications. It features a dual female contact configuration with 32 positions, providing a total of 64 contacts. The connector utilizes a 0.100-inch (2.54 mm) pitch and is constructed with a polyester housing. Gold plating is applied to the contacts to ensure reliable signal transmission. This component is engineered for right-angle PCB mounting without flanges.

Edgeboard Connectors Feature Summary

• High-current capability suitable for demanding power and signal applications
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Right-angle design facilitates efficient board space utilization
• Polyester housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• High-density electronic assemblies needing reliable signal paths
• Power distribution modules within larger equipment
• Automotive electronics utilizing card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before procurement to confirm current manufacturing status and compliance certifications. Ensure that the right-angle orientation and 32-position count align precisely with the target PCB footprint requirements. Cross-reference the gold plating specifications against environmental regulations applicable to the end product. Confirm that the absence of flanges matches the mechanical constraints of the assembly design.

Edgeboard Connectors Selection Notes

Select this component when high-current capacity and right-angle connectivity are required in a compact form factor. The dual female configuration supports mating with male card edge connectors. Consider the polyester housing material for its durability and electrical properties. Evaluate the 0.100-inch pitch compatibility with existing system architectures to ensure seamless integration without redesigning adjacent components.

Edgeboard Connectors Part Context

This connector belongs to the Standard Card Edge Connector category from TE Connectivity. It represents a solution for secure board-to-board or board-to-backplane connections. The series emphasizes reliability in industrial environments. The design focuses on maintaining consistent electrical performance under varying operational conditions while offering a standardized interface for widespread compatibility.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
