1761469-1

Edgeboard Connectors Overview

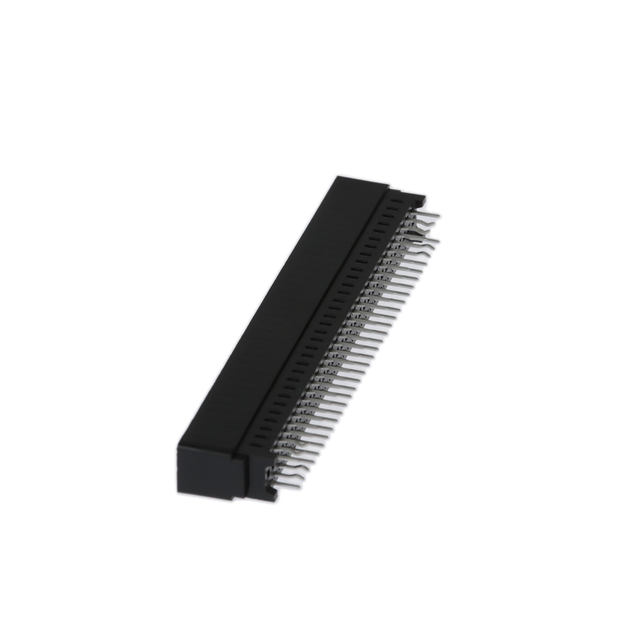

The TE Connectivity AMP Connectors part number 1761469-1 is a standard card edge connector assembly designed for high-current applications. It features a dual-edge female contact configuration with 64 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper alloy, terminated via solder through-hole mounting. The housing is constructed from black polyester material without flanges.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for robust signal integrity
• Gold-plated copper alloy contacts for corrosion resistance
• High-current capability suitable for demanding environments
• Through-hole solder termination for secure PCB attachment

Edgeboard Connectors Applications

• Industrial control systems requiring high current connections
• Power distribution modules in electronic equipment
• Server and storage backplane interfaces
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific datasheet revision to confirm mechanical dimensions and plating thickness requirements. Ensure the mating card edge thickness aligns with the connector's tolerance specifications. Confirm RoHS compliance status if required by project regulations. Check for any recent product change notices that may affect form or fit.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is necessary for increased pin count and current capacity. The 0.100-inch pitch offers a balance between density and manufacturability. Consider the through-hole mounting style for superior mechanical strength compared to surface mount alternatives in vibration-prone applications.

Edgeboard Connectors Part Context

This component belongs to the Standard Card Edge Connectors category within the TE Connectivity AMP portfolio. It serves as a critical interconnect solution for board-to-board or board-to-backplane applications where reliable electrical continuity and mechanical stability are paramount for system performance.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing tooling and mating connectors before considering alternative sources.
