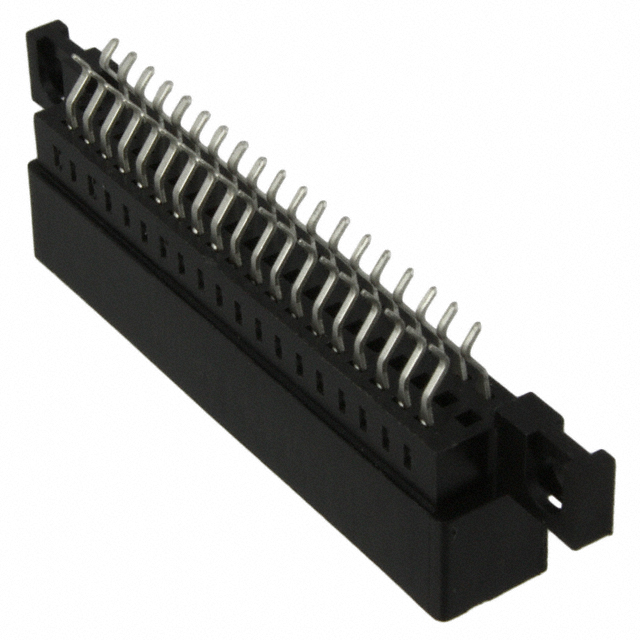

1761500-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FML 26POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1761500-1
- Description：CONN EDGE DUAL FML 26POS 0.100
- Series：Standard Edge II
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：1; 1; 1; 10
- Number of Positions：26 (20 + 6 Power)
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 1761500-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 1761500-1 is a dual-edge card edge connector designed for board-to-board applications. It features a female contact configuration with gold plating and a 0.100-inch (2.54 mm) centerline spacing. The connector provides a total of 26 positions, comprising 20 signal contacts and 6 dedicated power contacts. It is housed in a black insulator and utilizes a non-specified series designation within the manufacturer's portfolio.
Edgeboard Connectors Feature Summary
- Dual-edge card edge architecture supporting simultaneous signal and power transmission
- Gold-plated female contacts ensuring reliable electrical performance
- Integrated power section with six dedicated positions alongside standard signal lines
Edgeboard Connectors Applications
- High-density board-to-board interconnects requiring mixed signal and power routing
- Industrial control systems utilizing dual-edge card modules
- Telecommunications equipment employing standardized 2.54 mm pitch interfaces
Edgeboard Connectors Procurement Notes
Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the received units match the specified 26-position dual-edge configuration and gold contact finish. Ensure storage conditions comply with moisture sensitivity level requirements to maintain solderability and contact integrity prior to assembly.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge interface is required to combine high-current power delivery with multiple signal lines on a single profile. The 2.54 mm pitch aligns with common legacy and industrial standards. Evaluate mechanical retention needs as this is a non-specified series connector without integrated locking mechanisms beyond friction fit.
Edgeboard Connectors Part Context
This component belongs to the broader category of card edge connectors manufactured by TE Connectivity AMP Connectors. It serves as an interface solution for vertical mating configurations where space efficiency and mixed-signal capability are prioritized. The design supports standard PCB thicknesses compatible with the 2.54 mm grid system.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verifying identical mechanical dimensions, contact count, and electrical ratings with alternative manufacturers.
