1761842-1

Edgeboard Connectors Overview

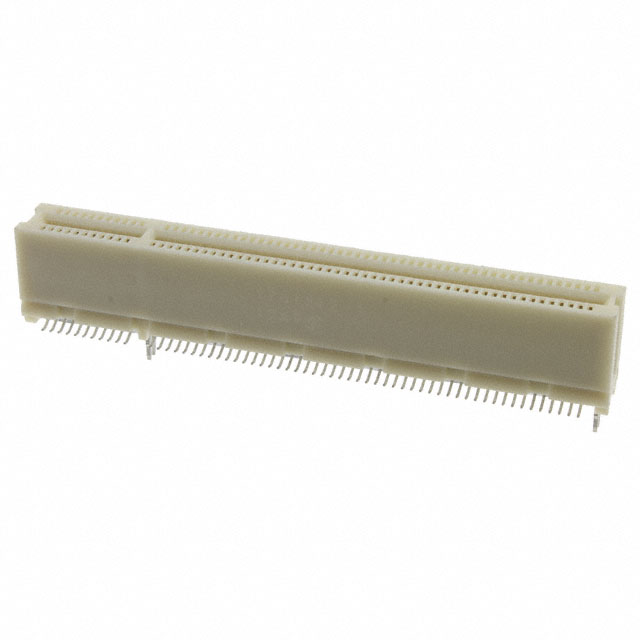

The TE Connectivity AMP Connectors model 1761842-1 is a PCI Express / PCI connector designed for surface mount technology. It features a female contact configuration with 120 positions arranged in a dual row. The connector utilizes a 0.050-inch (1.27mm) pitch and includes gold plating on the contacts to ensure reliable signal transmission. The housing is manufactured from natural-colored thermoplastic material, providing structural integrity for high-density board-to-card applications.

Edgeboard Connectors Feature Summary

• Dual-row female contact architecture optimized for PCI/PCIe card edge interfaces
• Surface mount termination method ensures secure PCB attachment
• Gold-plated contacts provide corrosion resistance and stable electrical performance

Edgeboard Connectors Applications

• High-speed data transfer systems requiring PCI Express compliance
• Industrial computing hardware utilizing standard PCI form factors
• Telecommunications infrastructure equipment needing robust backplane connections

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized TE Connectivity distributors. Confirm that the specific ordering suffix matches the required mechanical and electrical specifications for your design. Ensure compatibility with existing PCB footprint layouts before finalizing procurement orders to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this component when a 120-position dual-row interface is required for PCI or PCIe standards. Consider the 0.050-inch pitch constraint and surface mount installation requirements. Evaluate thermal management needs due to the high density of contacts within the specified housing dimensions.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in high-reliability interconnect solutions. The series supports critical data transmission applications where signal integrity and mechanical durability are paramount. It represents a standardized solution for modern electronic system architectures requiring dense I/O capabilities.

Edgeboard Connectors Replacement Considerations

No publicly confirmed substitute part numbers are available for this discontinued component. Engineers must evaluate current inventory levels or redesign the circuit board to accommodate alternative connectors with compatible pin counts and pitch specifications.
