1766436-1

Edgeboard Connectors Overview

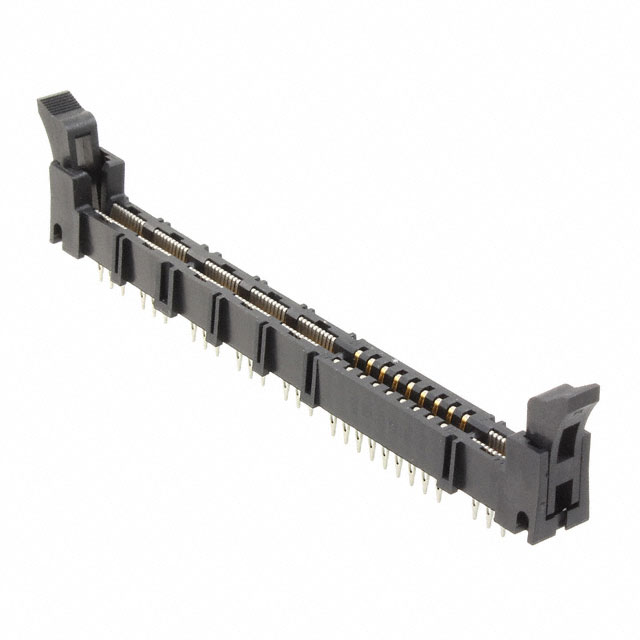

The TE Connectivity AMP Connectors 1766436-1 is a dual-edge female connector designed for Intel VRM applications. It features 30 positions, comprising 18 signal contacts and 12 power contacts. The connector utilizes gold contact finish and black housing material. It is specified for PCB thickness of 1.57 mm with a tail length of 3.8 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supporting high-density interconnect requirements
• Integrated latch mechanism for secure mating retention
• Gold-plated contacts to ensure reliable electrical conductivity

Edgeboard Connectors Applications

• Intel VRM 10.2 Specification compliance
• Intel VRM 11.0 Specification compliance
• Voltage Regulator Module (VRM) board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific revision status against current manufacturer documentation before procurement. Confirm that the required PCB stack-up matches the 1.57 mm thickness specification. Ensure the design accommodates the 3.8 mm tail length for proper edge card insertion. Cross-reference the official datasheet for any recent product change notifications affecting form or fit.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring compatibility with Intel VRM 10.2 or 11.0 standards. The dual-edge female interface is essential for specific backplane architectures. Verify that the application environment supports the mechanical latching features provided by this connector type.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio, specifically within the edgeboard connector category. It serves as a critical interface component in power management subsystems, bridging voltage regulator modules with main system boards through dual-edge card technology.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the reference data.
