1766735-2

Edgeboard Connectors Overview

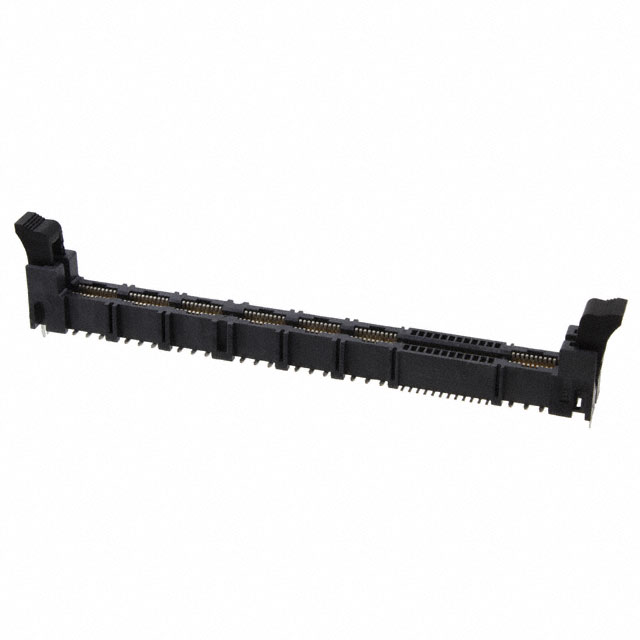

The TE Connectivity AMP Connectors part number 1766735-2 is a 38-position female card edge connector from the Mini Crown Edge / Elcon series. It features a dual-edge board design and is constructed for surface-mount technology (SMT) applications. The connector utilizes gold-plated contacts to ensure reliable signal transmission in high-performance environments. This component is specifically engineered to support Voltage Regulation Module (VRM) applications, adhering to VRM 12 standards for power delivery systems.

Edgeboard Connectors Feature Summary

• Dual-edge board design for secure card insertion
• Surface-mount construction for automated assembly
• Gold-plated contacts for enhanced conductivity

Edgeboard Connectors Applications

• Voltage Regulation Module (VRM) applications
• Support for VRM 12 standards
• High-performance power delivery systems

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and mating cycle ratings against the official datasheet before integration. Confirm that the surface-mount footprint matches the target PCB layout requirements. Ensure compatibility with VRM 12 specifications if used in power regulation circuits. Check for any recent product change notices regarding manufacturing location or material updates.

Edgeboard Connectors Selection Notes

Select this connector when a robust dual-edge interface is required for VRM 12 compliant designs. The surface-mount format facilitates efficient assembly processes. Consider the 38-position count for adequate I/O density. Evaluate thermal management needs as the connector supports power delivery functions. Ensure the mating card edge thickness aligns with the connector's mechanical specifications.

Edgeboard Connectors Part Context

This component belongs to the Mini Crown Edge / Elcon series, which provides reliable interconnect solutions for demanding electronic applications. The series is known for its durability and performance in power and signal transmission roles. As a female card edge connector, it interfaces with corresponding male pins on the mating card. The design emphasizes stability and low contact resistance for consistent operation.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing system designs before considering alternative sources. Consult manufacturer resources for potential obsolescence management strategies.
