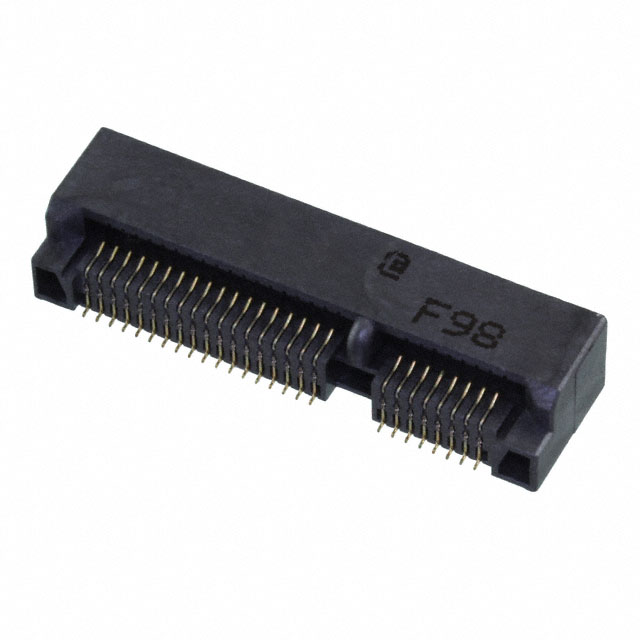

1775838-2

$0.95

Description：CONN PCI EXP MIN FML 52POS 0.031
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3b16ba46bc16 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1775838-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP MIN FML 52POS 0.031. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 1775838-2

Description：CONN PCI EXP MIN FML 52POS 0.031
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：PCI Express Mini Card
Gender：Female
Number of Positions/Bay/Row：8; 18
Number of Positions：52
Card Thickness：0.039" (1.00mm)
Number of Rows：2
Pitch：0.031" (0.80mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 1775838-2

1775838-2

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 1775838-2 is a card edge connector accessory designed for mSATA and mini PCI Express applications. It features a female gender configuration with a 0.031-inch (0.80mm) pitch. The component includes board guide features to ensure precise alignment during installation. It is classified as an edgeboard connector accessory intended for surface mount technology.

Edgeboard Connectors Feature Summary

Designed specifically for mSATA and mini PCI Express form factors
Incorporates board guide mechanisms for accurate positioning
Female contact configuration for mating with card edge interfaces

Edgeboard Connectors Applications

mSATA storage module interconnects
Mini PCI Express expansion slot accessories
Edgeboard connector alignment systems

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer documentation may undergo revisions. Confirm that the application environment supports the mechanical requirements of the board guide feature. Ensure compatibility with the target PCB layout and mating card dimensions prior to finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a dedicated guide mechanism is required for mSATA or mini PCIe modules. Evaluate the spatial constraints on the host PCB to accommodate the accessory footprint. Consider the mechanical stability provided by the board guide in high-vibration environments compared to standard unguided connectors.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors family of card edge accessories. It serves as a complementary part for edgeboard connectors used in compact computing and storage solutions. The product line focuses on providing reliable mechanical support and alignment for high-density interface applications.
