178093-1

Headers, Male Pins Overview

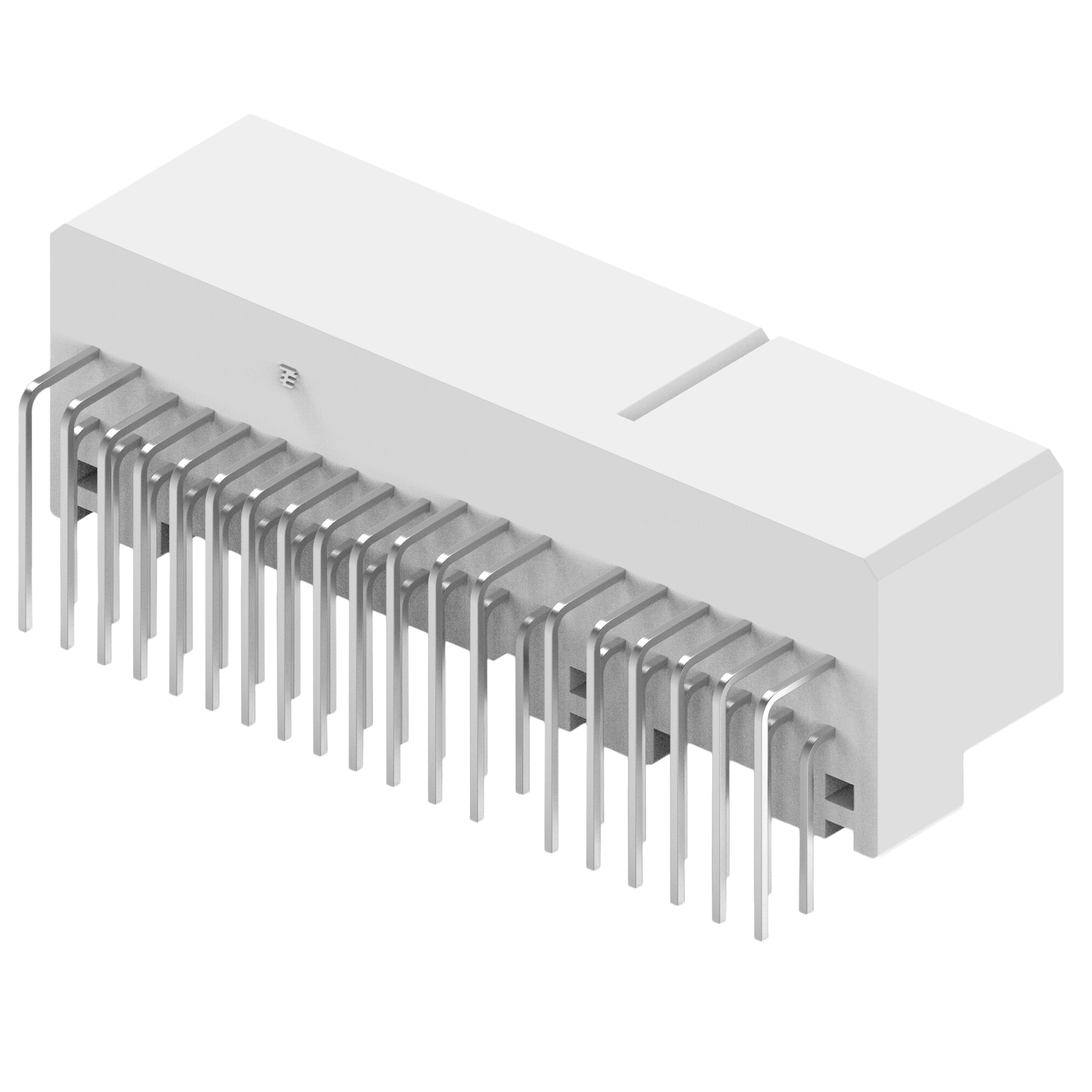

The TE Connectivity AMP Connectors part number 178093-1 is a hybrid cap housing assembly designed for the Dynamic 3000 series. It features 38 positions with a row spacing of 0.205 inches (5.20mm). The component utilizes a hybrid contact configuration, accommodating both 0.040-inch and 0.070-inch contact sizes within a single header structure. This non-gendered housing is intended for wire-to-board applications, providing a robust mechanical interface for signal transmission in industrial environments.

Headers, Male Pins Feature Summary

• Hybrid design supporting multiple contact sizes
• Header style construction for board mounting
• Non-gendered housing for flexible mating

Headers, Male Pins Applications

• Industrial control systems
• Machine tool wiring
• General purpose signal distribution

Headers, Male Pins Procurement Notes

Verify that the specific hybrid variant matches the required pinout configuration. Confirm compatibility with the corresponding plug housing and selected contact terminals. Ensure the order quantity aligns with project requirements as standard packaging may vary. Cross-reference the datasheet for precise dimensional tolerances before integration.

Headers, Male Pins Selection Notes

Select this component when a mixed contact size arrangement is necessary within a single connector footprint. Evaluate the 5.20mm row spacing against available PCB real estate. Consider the mechanical retention capabilities of the header style for vibration-prone applications. Verify insulation material properties against environmental exposure conditions.

Headers, Male Pins Part Context

This component belongs to the Dynamic 3000 series, a line of high-density connectors known for reliability in demanding applications. The series offers various configurations including straight and right-angle options. The 178093-1 specifically addresses needs for compact yet versatile interconnection solutions requiring mixed terminal types.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical compatibility if considering alternative manufacturers or different series housings.
