178488-1

Headers, Male Pins Overview

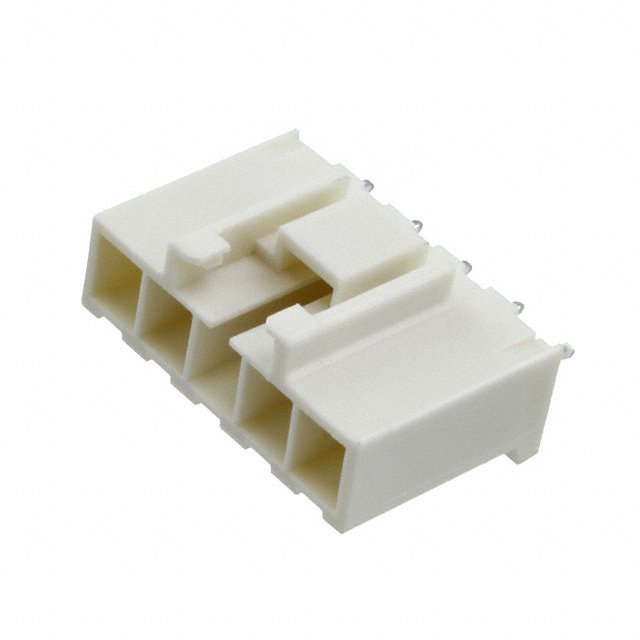

The TE Connectivity AMP Connectors part number 178488-1 is a vertical header connector designed for PCB mounting. It features a single row with five positions and utilizes brass contact material. The component is rated for a maximum current of 12 A and a voltage of 600 V. The centerline pitch is specified as 3.96 mm, with additional dimensional references to 3.5 mm and 6.2 mm. The housing meets the UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Vertical header configuration for direct printed circuit board integration
• Brass contact construction supporting high current and voltage loads
• Single-row layout providing compact multi-pin connectivity

Headers, Male Pins Applications

• Industrial control systems requiring robust signal or power distribution
• Consumer electronics assemblies needing reliable vertical interconnects
• General purpose electronic equipment utilizing standard pin headers

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for precise mechanical dimensions and mating partner compatibility. Confirm that the 12 A current rating aligns with your thermal management requirements. Ensure the vertical orientation matches your PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header is required for 5-position connections. The 3.96 mm pitch offers a balance between density and spacing. Consider the 600 V rating for applications involving higher potential differences compared to standard low-voltage logic interfaces.

Headers, Male Pins Part Context

This connector belongs to the broader family of TE Connectivity AMP rectangular connectors. These components are widely used across various industries for internal wiring and board-to-board connections. The AMP brand is recognized for standardized connector solutions ensuring interoperability within electronic systems.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verifying identical mechanical footprint, electrical ratings, and contact configuration with alternative manufacturers.
