180BCF6R

Overview

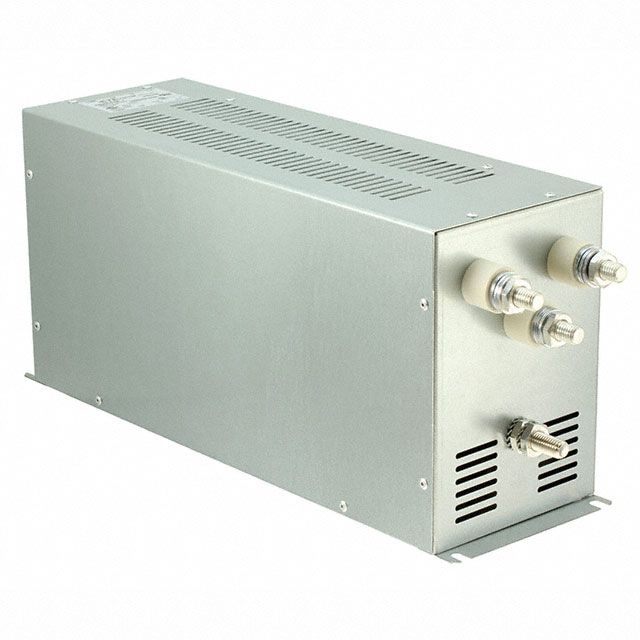

The TE Connectivity Corcom Filters 180BCF6R is a three-phase EMI/EMC power line filter designed for high-current industrial applications. It features a compact, lightweight book-form construction that facilitates efficient common and differential mode noise suppression below 100 kHz. The unit supports a maximum current rating of 180 A and operates at voltages up to 480 VAC. This component utilizes stud input connections and is engineered to meet stringent electromagnetic compatibility requirements in demanding electrical environments.

Feature Summary

• Compact, lightweight book-form design for space-constrained installations
• Effective common and differential mode noise suppression below 100 kHz
• High current handling capability suitable for heavy-duty industrial loads

Applications

• Industrial motor drives and variable frequency drives
• Power conversion systems requiring robust EMI filtering
• Heavy machinery with high-amperage three-phase power inputs

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the stud input connection type matches your mounting infrastructure. Check for RoHS compliance status if required by your project specifications. Ensure the operating temperature range aligns with your environmental conditions. Validate that the filter's physical dimensions fit within your designated enclosure space.

Selection Notes

Select this model when high current capacity and effective low-frequency noise attenuation are critical. The book-form design offers advantages in thermal management and installation flexibility compared to bulkier alternatives. Consider the stud termination style for secure, high-current connections. Evaluate the need for three-phase filtering versus single-phase solutions based on your power distribution architecture.

Part Context

This component belongs to the Corcom BCF series, which specializes in three-phase power line filters. The series is known for providing reliable EMI/EMC protection in industrial settings. The 180BCF6R variant specifically addresses high-current applications, distinguishing it from lower-rated models within the same product family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-references.
