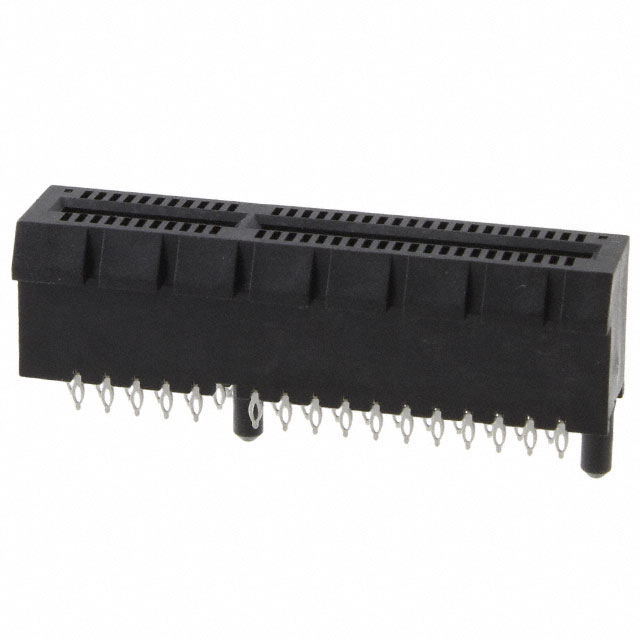

1871058-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FEMALE 64POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1871058-2
- Description：CONN PCI EXP FEMALE 64POS 0.039
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp
- Mounting Type：Through Hole
- Termination：Press-Fit
- Contact Material：Copper Alloy
- Contact Finish：Gold-Palladium
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 1871058-2
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors model 1871058-2 is a PCI Express female connector featuring 64 positions. It utilizes gold-palladium contact plating for reliable signal transmission and operates with a pitch of 0.039 inches (1.00mm). The housing is constructed from black thermoplastic material, designed to support high-speed data interfaces in computing and server applications.
Edgeboard Connectors Feature Summary
- Gold-palladium contact plating ensures durable electrical performance
- 64-position configuration supports standard PCI Express signaling
- Black thermoplastic housing provides structural stability
Edgeboard Connectors Applications
- PCI Express card edge connections
- Server motherboard interconnects
- High-speed data interface modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official TE Connectivity datasheet to confirm mechanical dimensions and plating specifications. Ensure compatibility with mating receptacle standards before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.
Edgeboard Connectors Selection Notes
Select this component when a 64-position female connector is required for PCI Express architectures. Consider the 1.00mm pitch requirement and gold-palladium durability needs. Evaluate thermal management capabilities and housing color constraints relative to the target system design specifications.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors series, specifically within the PCI Express connector family. It serves as a critical interface element for connecting expansion cards to host systems, ensuring standardized electrical connectivity and mechanical retention in high-performance computing environments.
Edgeboard Connectors Replacement Considerations
Direct substitutes include related models such as 1871058-4, which shares similar PCI Express characteristics but may differ in pin count or specific mechanical variations. Verify exact dimensional compatibility before substitution.
