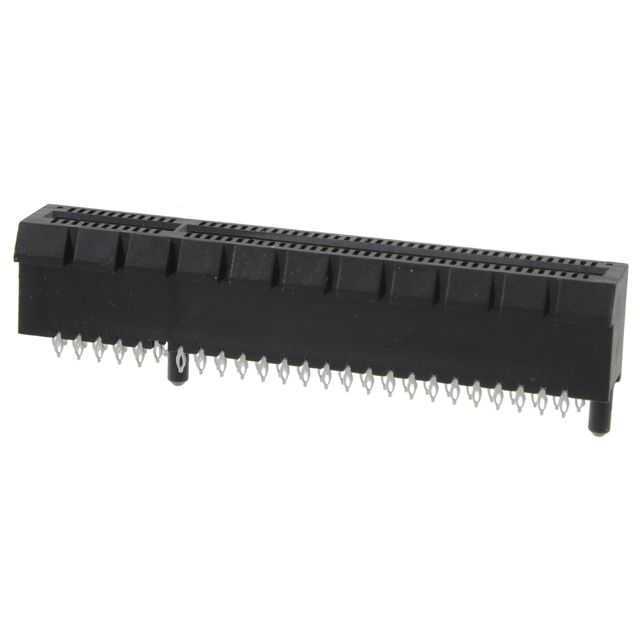

1871058-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FEMALE 98POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1871058-3
- Description：CONN PCI EXP FEMALE 98POS 0.039
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Box
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：98
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp
- Mounting Type：Through Hole
- Termination：Press-Fit
- Contact Material：Copper Alloy
- Contact Finish：Gold-Palladium
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 1871058-3
Edgeboard Connectors Overview
The 1871058-3 is a PCI Express female edgeboard connector manufactured by TE Connectivity AMP Connectors. It features a 98-position configuration with a 0.039-inch card thickness specification. This component is designed for high-density signal transmission in electronic systems requiring robust PCIe interface connectivity.
Edgeboard Connectors Feature Summary
- Female contact configuration for secure mating
- Designed for edgeboard connection applications
Edgeboard Connectors Applications
- PCI Express system integration
- Edgeboard interconnects
- High-density signal transmission modules
Edgeboard Connectors Procurement Notes
Verify the exact part number against official TE Connectivity documentation to ensure compatibility with specific design requirements. Confirm that the 98-position configuration and 0.039-inch card thickness meet your application's mechanical constraints before procurement.
Edgeboard Connectors Selection Notes
Select this connector when a female PCI Express interface is required for edgeboard applications. Ensure the design accommodates the 98-position layout and standard card thickness specifications provided by the manufacturer for proper fit and function.
Edgeboard Connectors Part Context
This component belongs to the PCI Express / PCI connectors category from TE Connectivity AMP Connectors. It serves as a critical interface element for connecting peripheral cards to mainboards or backplanes in computing and industrial electronics.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference pin counts and mechanical dimensions to ensure functional equivalence without modifying the host board design.
