1871058-4

Edgeboard Connectors Overview

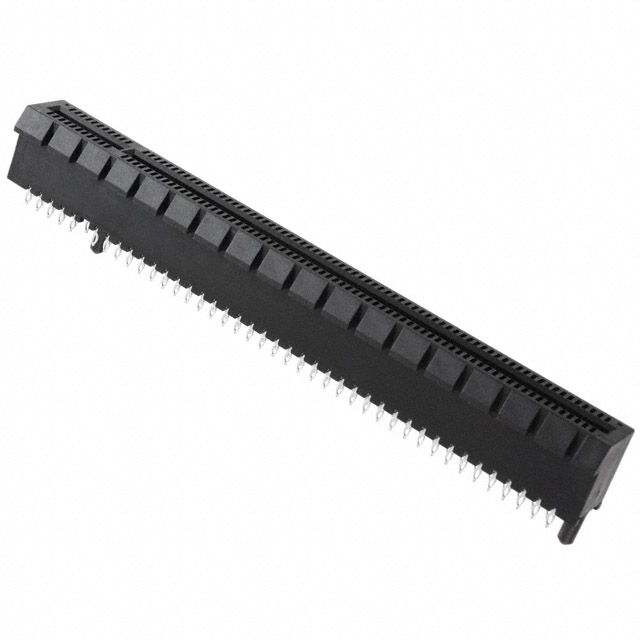

The TE Connectivity AMP Connectors 1871058-4 is a PCI Express female connector featuring 164 positions. It utilizes gold-palladium contact plating and operates with a 1.00mm (0.039 inch) pitch. The housing is black, designed for board guide installation with locking ramp features.

Edgeboard Connectors Feature Summary

• PCI Express compatible female connector design
• Gold-palladium contact plating for reliable signal transmission
• Integrated board guide and locking ramp mechanisms

Edgeboard Connectors Applications

• PCI Express card edge interconnections
• High-speed data transfer systems
• Computer peripheral hardware

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with required PCI Express standards. Confirm that the gold-palladium plating and mechanical dimensions meet the target application's electrical and physical specifications before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a 164-position female connector is required for PCI Express applications. Ensure the 1.00mm pitch aligns with the mating card edge requirements. Consider the black housing color and locking ramp features for secure assembly in dense electronic environments.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors line of PCI Express / PCI connectors. It is categorized under card edge connectors, specifically designed for high-reliability interconnect solutions in computing and communication equipment sectors.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference pin counts, pitch, and mounting styles to ensure functional equivalence without compromising system integrity.
