18QHTF32-112.480-OE

Oscillators Overview

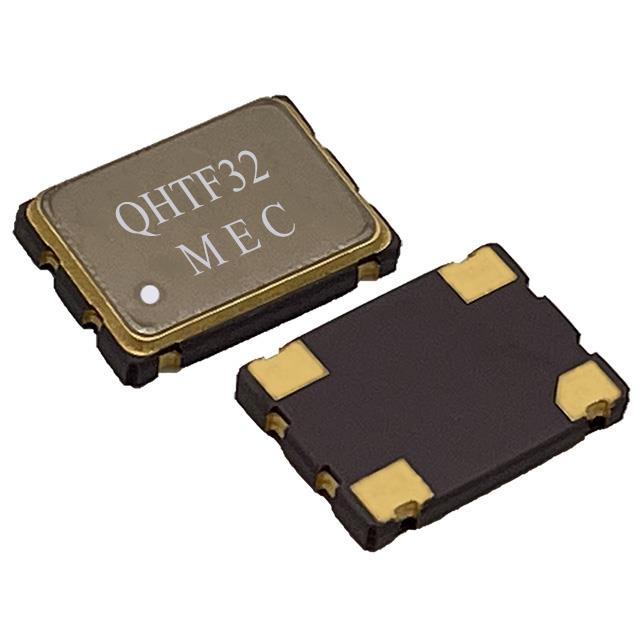

The 18QHTF32-112.480-OE is a standard crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a frequency of 112.480 MHz and utilizes LVCMOS output logic. The device supports a supply voltage of 1.8V and features an enable/disable control function. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring precise timing signals.

Oscillators Feature Summary

• Supports LVCMOS output logic for digital interface compatibility
• Includes enable/disable functionality for power management
• Utilizes a leadless SMD package for space-constrained designs

Oscillators Applications

• Digital signal processing systems
• Communication equipment timing references
• Embedded system clock generation

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required voltage levels and load capacitance. Confirm that the 1.8V supply requirement aligns with the target circuit design before procurement. Check for any recent revisions to the pinout or electrical specifications.

Oscillators Selection Notes

Select this component when a 112.480 MHz clock source is required with low-voltage operation. Ensure the application environment supports the specified operating temperature range. Consider the enable/disable feature if dynamic power saving is necessary for the system architecture.

Oscillators Part Context

This part belongs to the 18QHTF32 series from Mercury Electronics, which offers various frequencies within a standardized 4-SMD footprint. The series is characterized by its use of LVCMOS outputs and support for low-voltage supplies, catering to modern portable and high-density electronic devices.

Oscillators Replacement Considerations

Direct substitutes include other 112.480 MHz oscillators from Mercury Electronics with identical package dimensions and LVCMOS output characteristics. Verify that alternative parts maintain the same 1.8V supply voltage and enable/disable pin configuration to ensure pin-to-pin compatibility.
