18QHTF53-37.126-PD

Oscillators Overview

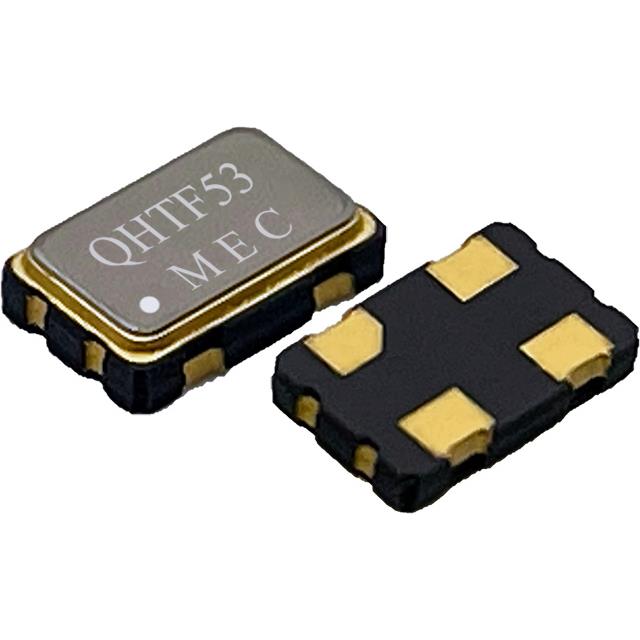

The 18QHTF53-37.126-PD is a standard crystal oscillator (XO) manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a fixed frequency of 37.126 MHz and utilizes LVCMOS output logic. The device is designed for low-power applications, featuring a supply voltage of 1.8V and a standby power-down mode. It is housed in a compact 4-SMD, No Lead package with dimensions of 5.0 x 3.2 mm.

Oscillators Feature Summary

• Supports LVCMOS output logic for digital interface compatibility
• Includes standby power-down functionality to reduce energy consumption
• Utilizes a surface-mount 4-SMD no-lead package design

Oscillators Applications

• General-purpose clock signal generation
• Digital circuit timing references
• Embedded system clock sources

Oscillators Procurement Notes

Verify the specific ordering suffix and package variant when sourcing. Confirm that the component matches the required 1.8V supply specification and LVCMOS output requirements for your target application. Ensure the manufacturer details align with Mercury Electronics Ind. Co. Ltd to guarantee authenticity and performance consistency.

Oscillators Selection Notes

Select this component when a precise 37.126 MHz reference is required with low voltage operation. Consider the 5.0x3.2 mm footprint for PCB layout constraints. Evaluate the need for power-down capabilities if battery life or thermal management is a priority in the design.

Oscillators Part Context

This part belongs to the Mercury Electronics XO series, which provides standard frequency control solutions. The manufacturer specializes in quartz crystals and oscillators, offering various packages and frequencies. This specific model represents a common configuration for general electronic timing applications.

Oscillators Replacement Considerations

Direct substitutes may include other 37.126 MHz LVCMOS oscillators in 5.0x3.2mm packages from different manufacturers. Verify pinout compatibility and electrical specifications before substitution. Cross-reference with distributor databases for equivalent part numbers.
