1906BP18A027001E

Overview

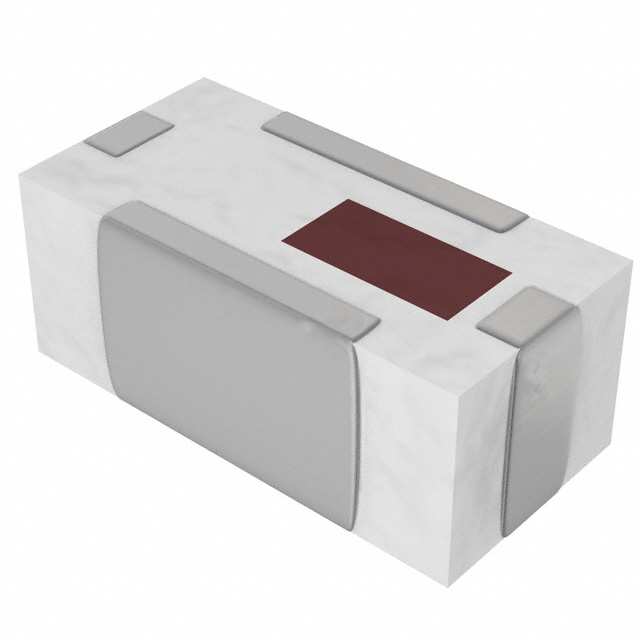

The 1906BP18A027001E is a surface-mount bandpass filter manufactured by Johanson Technology Inc. Designed for RF signal conditioning, this component operates at a center frequency of 1.9 GHz with a bandwidth of 270 MHz. It utilizes a 1206 package footprint and supports board mounting via SMD/SMT termination. The device functions within an operating temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

• Provides selective bandpass filtering for RF signals centered at 1.9 GHz
• Utilizes a compact 1206 surface-mount package for automated assembly
• Engineered for stable operation across industrial temperature ranges

Applications

• Wireless communication systems requiring 1.9 GHz band filtering
• RF front-end modules in mobile devices
• Signal conditioning circuits in base station equipment

Procurement Notes

Verify the complete part number including suffixes against official Johanson Technology documentation to ensure correct specifications. Confirm RoHS compliance status and specific packaging requirements such as reel or cut tape quantities directly with authorized distributors prior to ordering.

Selection Notes

Select this component when a 1.9 GHz center frequency and 270 MHz bandwidth are required in a 1206 form factor. Ensure the application environment stays within the specified -40°C to +85°C operating temperature range. Verify impedance matching and insertion loss requirements against system design specifications.

Part Context

This component belongs to Johanson Technology's BP series of bandpass filters. These filters are designed for high-performance RF applications, offering precise frequency selection in a small footprint suitable for modern electronic devices requiring efficient signal processing.

FAQ

What is the center frequency of the 1906BP18A027001E?

The center frequency is 1.9 GHz.

What package type does this filter use?

It uses a 1206 surface-mount package.
