1926024-4

Edgeboard Connectors Overview

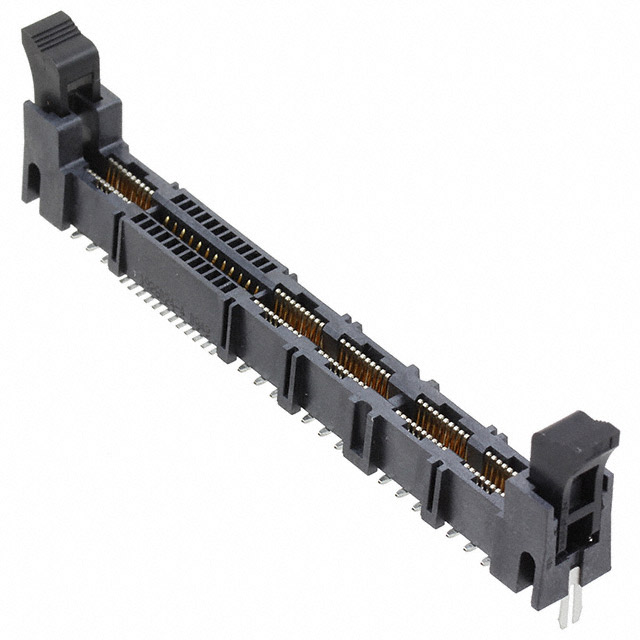

The TE Connectivity AMP Connectors part number 1926024-4 is a dual-edge female connector housing designed for high-density interconnect applications. It features a total of 34 positions, configured with 24 signal contacts and 10 dedicated power contacts. The connector utilizes a gold-plated contact finish to ensure reliable conductivity and corrosion resistance in demanding environments. This component is manufactured by TE Connectivity AMP Connectors and is classified as a non-specified series connector.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supporting both signal and power transmission within a single housing unit.
• Gold-plated contact surfaces provide enhanced durability and stable electrical performance over repeated mating cycles.

Edgeboard Connectors Applications

• High-density electronic system interconnections
• Signal and power distribution modules
• Industrial equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific pinout configuration and contact plating requirements against the official datasheet before procurement. Ensure compatibility with mating headers and verify that the dual-edge design aligns with the target PCB layout constraints. Confirm supply chain authenticity through authorized TE Connectivity distributors to guarantee component integrity.

Edgeboard Connectors Selection Notes

Select this component when a compact solution is required to integrate both signal and power lines simultaneously. The dual-edge architecture optimizes board space utilization compared to separate connectors. Evaluate the mechanical fit and mating force characteristics to ensure seamless integration with existing assembly processes and enclosure designs.

Edgeboard Connectors Part Context

This connector belongs to the broader portfolio of TE Connectivity AMP Connectors, which specializes in robust interconnection solutions. The AMP brand has a long history of developing reliable components for harsh environments, ranging from aerospace to industrial automation. This specific model represents the engineering focus on combining multiple circuit functions into efficient, space-saving hardware formats.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing with similar dual-edge female connectors from other manufacturers requires careful verification of pin count, pitch, and mechanical dimensions to ensure functional equivalence.

Edgeboard Connectors FAQ

What is the contact configuration of the 1926024-4?

The connector features a total of 34 positions, specifically arranged with 24 signal contacts and 10 power contacts.

What material is used for the contact plating?

The contacts utilize a gold plating finish to ensure reliable conductivity and resistance to environmental degradation.
