Edgeboard Connectors Overview

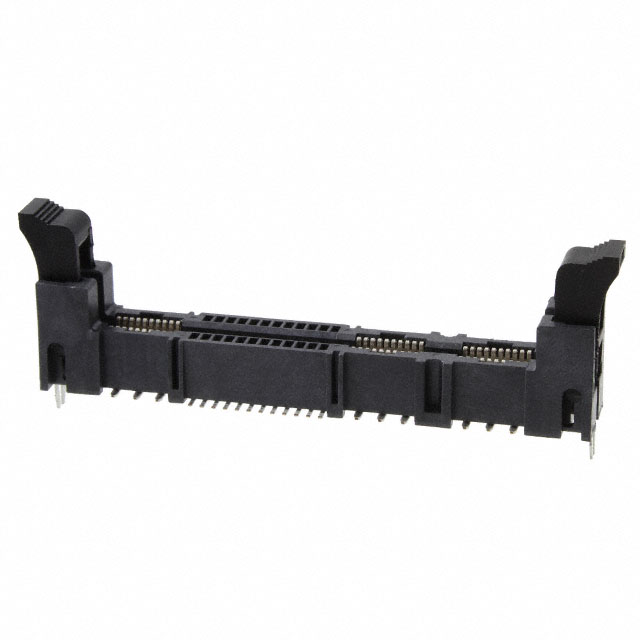

The TE Connectivity AMP Connectors part number 1926155-2 is a MINI CROWN EDGE dual female card edge power connector. It features 30 positions, configured as 24 signal and 6 power contacts. The connector utilizes gold-plated terminals for reliable conductivity and corrosion resistance. Designed for surface mount technology (SMT), it includes an integrated latch mechanism to ensure secure mating with corresponding card edge connectors. This component is engineered for high-density power and signal transmission in compact electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual female contact configuration supporting both signal and power lines
• Gold-plated terminal finish for enhanced electrical performance
• Integrated latch system for positive connection retention
• Surface mount termination style for automated assembly

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Power distribution modules requiring secure latching
• Compact electronic enclosures utilizing SMT processes
• Signal and power hybrid connectivity solutions

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact plating thickness and latch variations. Ensure compatibility with the mating card edge geometry and pitch specifications before procurement. Cross-reference the manufacturer datasheet for precise reflow soldering profiles and mechanical tolerances to guarantee reliable integration into the target design.

Edgeboard Connectors Selection Notes

Select this component when a dual female interface with integrated mechanical locking is required for surface mount applications. The gold plating offers superior durability compared to tin alternatives in high-cycle environments. Consider the 30-position layout for designs needing dedicated power segments alongside signal lines within a single compact footprint.

Edgeboard Connectors Part Context

This part belongs to the MINI CROWN EDGE series by TE Connectivity AMP Connectors, designed for high-reliability interconnects. The series supports various configurations for signal and power needs. As a specialized card edge solution, it addresses space-constrained applications requiring robust mechanical retention and consistent electrical performance through its unique latch design.
