1926793-2

Edgeboard Connectors Overview

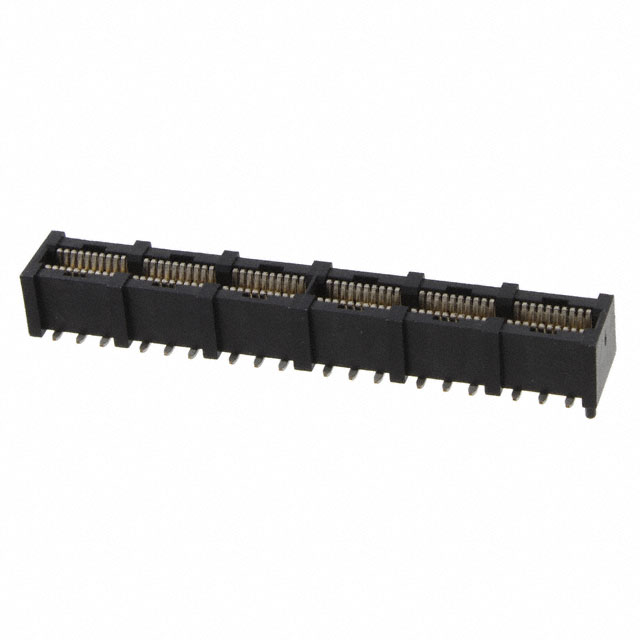

The TE Connectivity AMP Connectors part number 1926793-2 is a standard card edge connector designed for surface mount technology (SMT) applications. It features a female socket configuration with six contact positions, belonging to the Mini Crown series. The component utilizes a vertical orientation and is constructed for reliable high-density interconnections on printed circuit boards.

Edgeboard Connectors Feature Summary

• Surface mount termination method ensures secure attachment to PCB traces
• Mini Crown series design provides compact footprint for space-constrained layouts
• Female socket contacts accommodate standard card edge modules

Edgeboard Connectors Applications

• Industrial control system I/O modules
• Telecommunications equipment backplanes
• Consumer electronics internal board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific package quantity against distributor listings, as factory pack quantities may vary between single units and bulk reels. Confirm RoHS compliance status directly with the manufacturer or authorized agents prior to finalizing procurement orders to ensure adherence to environmental regulations.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, surface-mount card edge interface is required. Ensure the mating card edge thickness aligns with the connector's mechanical specifications. Consider the six-position count and vertical mounting style relative to available PCB real estate and assembly automation capabilities.

Edgeboard Connectors Part Context

This component belongs to the Mini Crown family of card edge connectors, which are engineered for high-reliability applications in demanding environments. The series is known for its robust mechanical locking and consistent electrical performance across various industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult TE Connectivity technical support for direct replacements if this specific six-position variant is unavailable.
