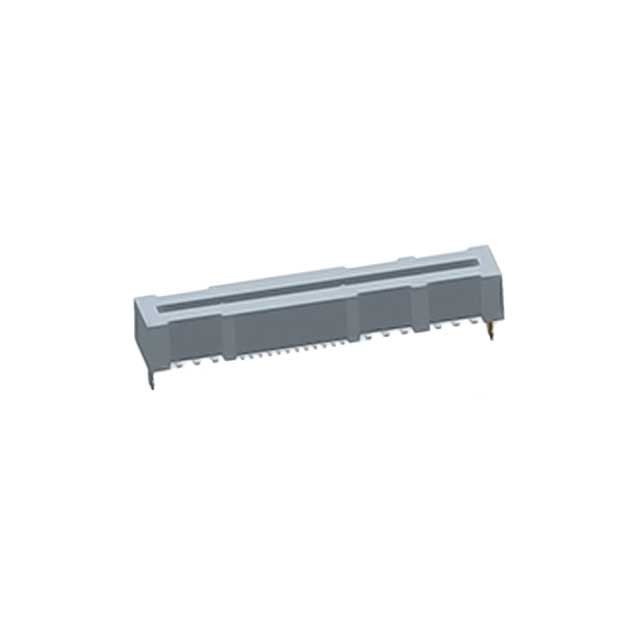

1926819-4 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN VRM FMALE 30POS GOLD. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1926819-4
- Description：CONN VRM FMALE 30POS GOLD
- Series：Mini Crown Edge, Elcon
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：VRM
- Gender：Female
- Number of Positions/Bay/Row：1; 12; 1; 1
- Number of Positions：30
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Board Lock
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 1926819-4
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 1926819-4 is a 30-position female VRM card edge connector. It features gold-plated contacts and a black housing, designed for board-to-board or card-edge applications.
Edgeboard Connectors Feature Summary
- Female VRM card edge connector design
- Gold contact plating for reliable performance
- Black housing construction
Edgeboard Connectors Applications
- Board-to-board interconnection
- Card-edge interface applications
Edgeboard Connectors Procurement Notes
Verify the exact pin count and gender configuration against your schematic requirements. Confirm that the VRM form factor matches your PCB layout constraints. Ensure compatibility with mating card edge thickness specifications before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a 30-position female card edge interface is required. Consider the gold plating for corrosion resistance in demanding environments. Verify mechanical fit within the designated slot dimensions.
Edgeboard Connectors Part Context
This component belongs to the VRM connector family from TE Connectivity AMP Connectors. It serves as a specialized interface solution for high-density electronic assemblies requiring robust card-edge connectivity.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
Edgeboard Connectors FAQ
What is the contact material finish?
The contacts feature gold plating.
How many positions does this connector have?
It has 30 positions.
