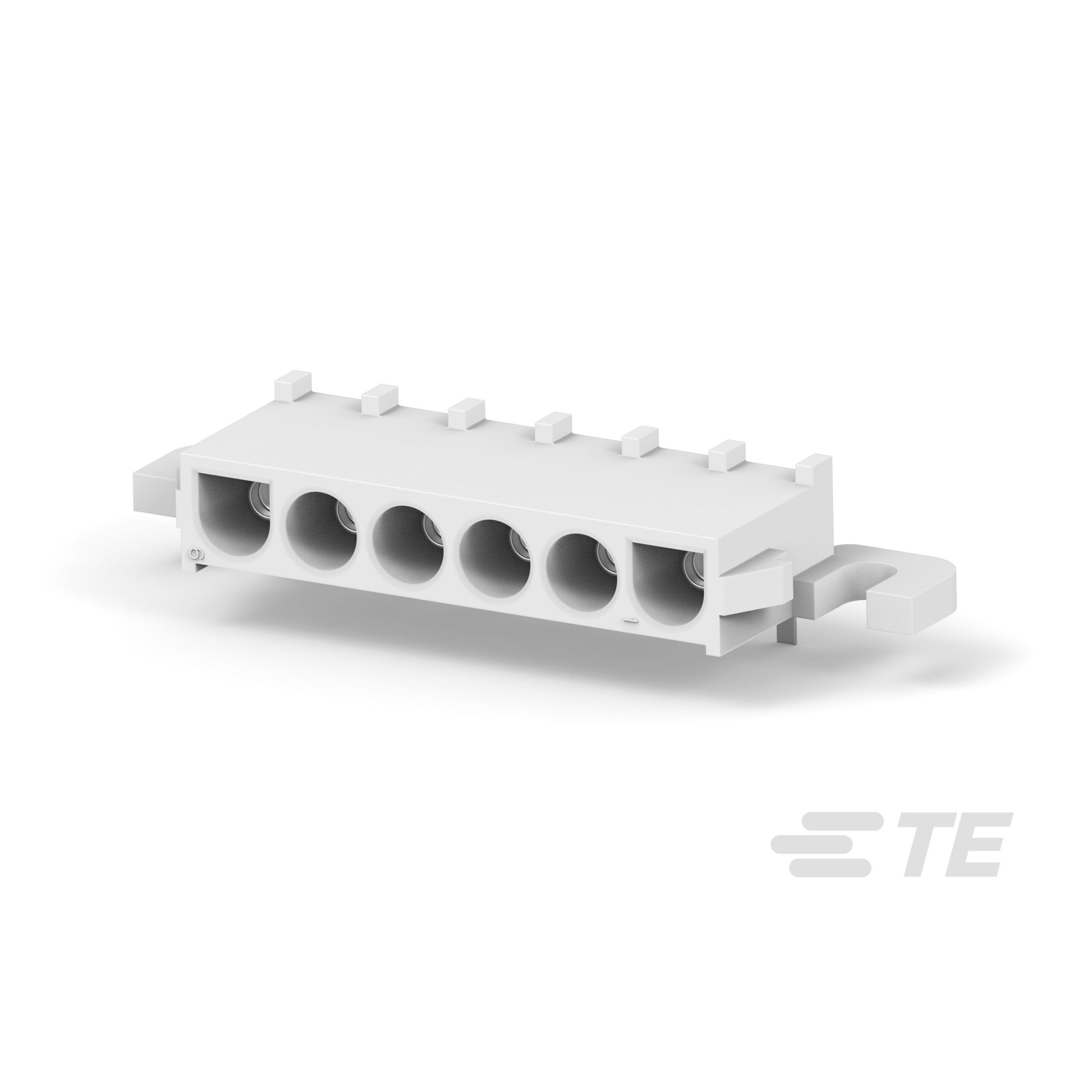

1969813-1

1969813-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 06P UMNL HDR ASSY R/A, SCKT V0 G. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1969813-1

• Description：06P UMNL HDR ASSY R/A, SCKT V0 G
• Series：Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk,Box
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.250" (6.35mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：150.0µin (3.81µm)
• Insulation Color：Natural
• Insulation Height：0.360" (9.14mm)
• Contact Length - Post：0.160" (4.06mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：12A
• Voltage Rating：600VAC
