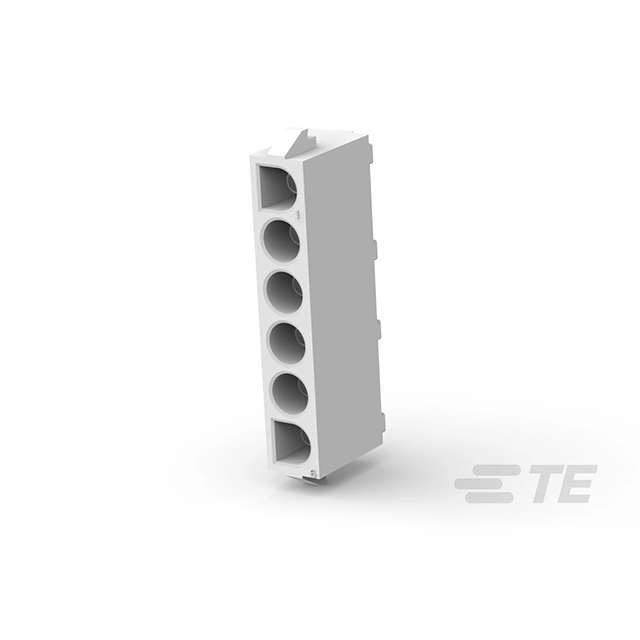

1969830-1

1969830-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 6P UMNL SKT ASSY GW. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1969830-1

• Description：6P UMNL SKT ASSY GW
• Series：Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Box
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.250" (6.35mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Natural
• Insulation Height：0.580" (14.73mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：19A
• Voltage Rating：600VAC

Headers, Receptacles, Female Sockets datasheet and documents for 1969830-1
