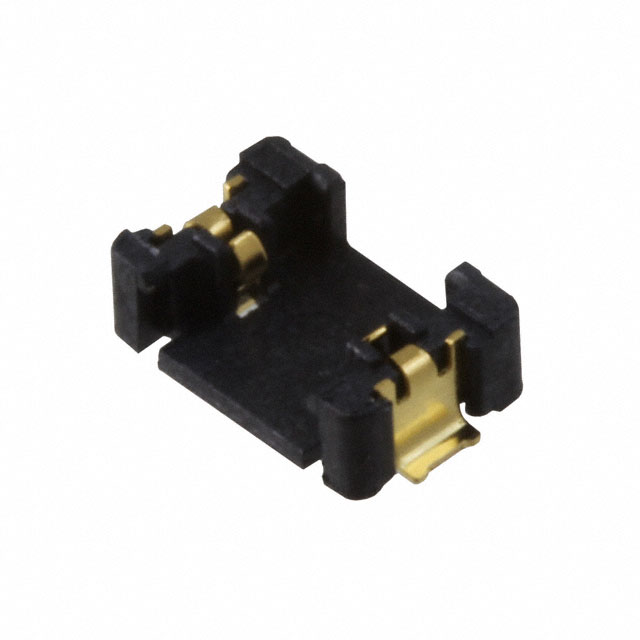

1981813-1

1981813-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT 2POS 0.031 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1981813-1

• Description：CONN RCPT 2POS 0.031 GOLD SMD
• Series：Micro SLP
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Outer Shroud Contact
• Style：Board to Cable/Wire
• Number of Positions：2
• Number of Positions Loaded：All
• Pitch - Mating：0.031" (0.80mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：12.0µin (0.30µm)
• Insulation Color：Black
• Insulation Height：0.055" (1.40mm)
• Contact Length - Post：-
• Operating Temperature：-25°C ~ 85°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Solder Retention
• Current Rating (Amps)：0.5A
• Voltage Rating：30V

Headers, Receptacles, Female Sockets datasheet and documents for 1981813-1
