1EK1

Overview

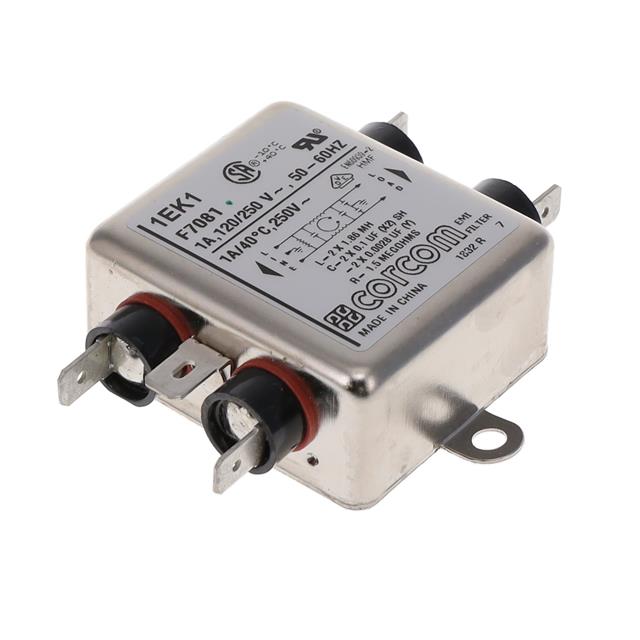

The TE Connectivity Corcom Filters 1EK1 is a single-phase EMC/EMI line filter from the K Series, designed for high impedance load applications requiring low leakage current. It operates at 50/60Hz with a rated voltage of 250VAC and a current capacity of 1A. The unit features a single-stage configuration with an inductance of 1.86mH and utilizes quick connect termination style.

Feature Summary

• Designed for high impedance load applications
• Engineered to provide low leakage current
• Single-stage EMI/RFI suppression

Applications

• High impedance load equipment
• General purpose RFI power line filtering

Procurement Notes

Verify the specific datasheet version for the 1EK1 part number to confirm current manufacturing status and any recent product change notices. Ensure that the application environment supports the specified 250VAC rating and 1A current limit. Confirm that the quick connect termination style matches the mating connector requirements of the target system design.

Selection Notes

Select this component when low leakage current is a critical requirement for the connected load. The single-stage design offers compact integration for general-purpose noise reduction. Verify that the 1.86mH inductance provides sufficient attenuation for the specific frequency spectrum of the interference present in the installation environment.

Part Context

This component belongs to the TE Connectivity Corcom Filters K Series, which specializes in power line filters for commercial and industrial use. The series addresses electromagnetic compatibility needs by suppressing conducted noise on AC power lines, ensuring compliance with relevant regulatory standards for electronic equipment operation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
