1FBH3=F8588

Overview

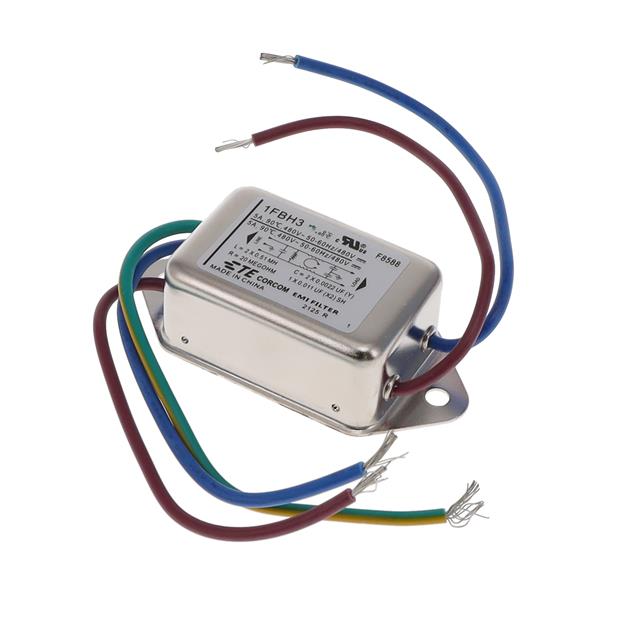

The TE Connectivity Corcom 1FBH3=F8588 is a single-phase power line filter designed for chassis mounting. It features wire lead inputs and outputs, rated for 480 VAC/VDC operation at 50/60 Hz. The unit provides 1 A current handling capacity with an inductance of 510 µH. This component serves as a single-stage EMC/EMI suppression solution for AC power lines.

Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction
• Wire lead termination style

Applications

• Power supply units
• Battery chargers
• Energy-efficient systems

Procurement Notes

Verify the complete part number including the suffix to ensure correct specifications. Confirm voltage ratings and mounting requirements against system designs. Check RoHS compliance status if required by project standards. Validate datasheet revisions before final procurement decisions.

Selection Notes

Select this model for applications requiring single-phase noise suppression in compact chassis environments. Ensure input/output wiring matches the wire lead configuration. Verify that the 1 A rating and 480 VAC limit align with operational parameters.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product line offers various configurations for industrial and commercial power management applications.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical characteristics and physical dimensions match before replacing.

FAQ

What is the maximum operating voltage?

The filter is rated for 480 VAC and 480 VDC.

How is the filter mounted?

It utilizes a chassis mount design.
