1MM-HU-D20-VS-00-F-TBP

Headers, Male Pins Overview

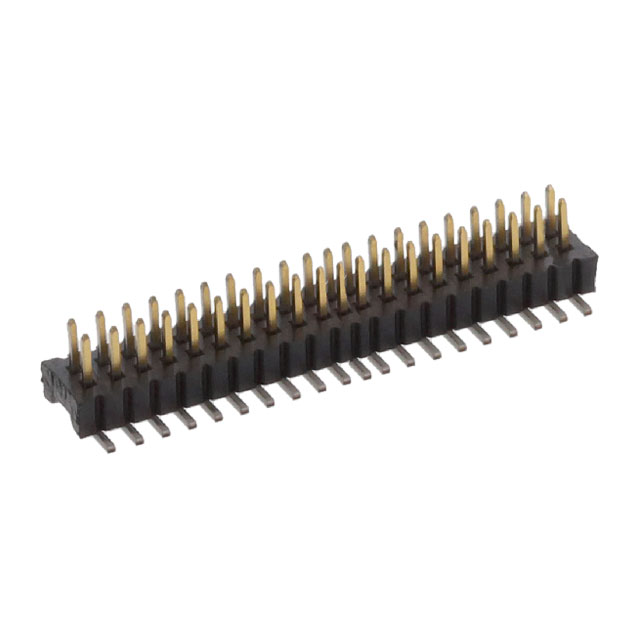

The TE Connectivity AMP Connectors model 1MM-HU-D20-VS-00-F-TBP is a surface mount board-to-board connector from the AMPMODU 1MM series. It features a dual-row header configuration with 40 positions and a 1.00mm pitch. The contacts are male pins with gold plating, housed in an unshrouded black liquid crystal polymer (LCP) insulator. Rated for 1A at 30VAC, it operates within a temperature range of -55°C to 125°C and utilizes a push-pull locking mechanism.

Headers, Male Pins Feature Summary

• Dual-row surface mount header design for compact board-to-board interconnections
• Gold-plated male pin contacts ensure reliable signal transmission
• Unshrouded housing structure facilitates high-density mounting applications
• Push-pull locking system provides secure mechanical retention

Headers, Male Pins Applications

• High-density electronic assemblies requiring small centerline spacing
• Board-to-board connections in consumer electronics
• Industrial control modules with space constraints
• Telecommunications equipment internal interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and reel packaging specifications. Ensure compatibility with mating receptacle connectors within the same AMPMODU 1MM series. Confirm that the unshrouded design aligns with your assembly clearance requirements and that the surface mount footprint matches your PCB layout guidelines.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for direct board stacking. The 1.00mm pitch allows for higher I/O density compared to standard 2.54mm or 2.00mm connectors. Consider the unshrouded design for applications where side clearance is limited but lateral stability is provided by the push-pull latch. Verify thermal resistance during soldering processes given the LCP material properties.

Headers, Male Pins Part Context

This part belongs to the AMPMODU 1MM Small Centerline Interconnection System, designed for miniaturized electronic devices. The series offers various configurations including shrouded and unshrouded headers and receptacles. This specific model represents a standard height header variant intended for automated pick-and-place manufacturing processes.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other TE Connectivity AMPMODU 1MM series headers with matching 40-position dual-row configurations. Ensure the replacement maintains the 1.00mm pitch and surface mount termination style. Verify that any alternative part number supports the same push-pull locking mechanism and electrical ratings.
