1N4748A,113

Overview

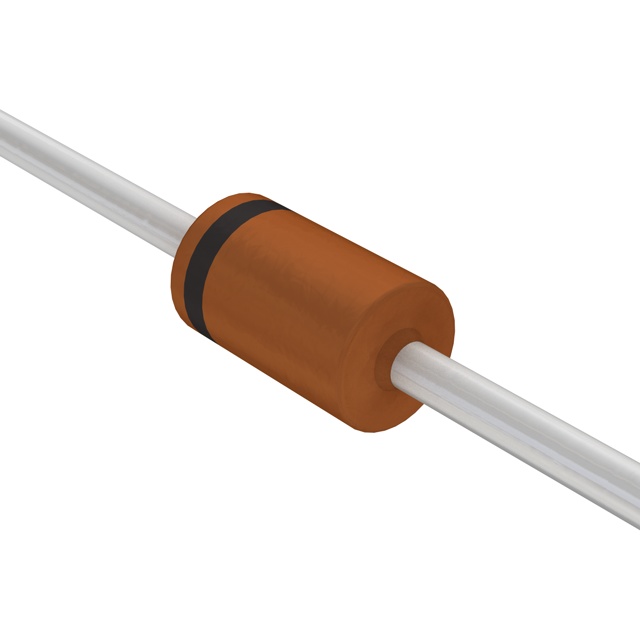

The NXP USA Inc. 1N4748A,113 is a low voltage regulator diode housed in a hermetically sealed small SOD66 (DO-41) glass package. It features a nominal working voltage of 22 V with a tolerance series of ±5%. The device has a total power dissipation of max. ≤ 1000 mW and operates within a junction temperature range of −65 to +200 °C. Key electrical characteristics include a test current of 11.5 mA, a differential resistance of 23 Ω, and a reverse current of 750 μA at the test current condition.

Feature Summary

• Hermetically sealed construction in a small glass package for excellent stability
• Low voltage regulation capability with specified tolerance series
• High thermal endurance supporting elevated junction temperatures

Applications

• Low voltage stabilizers

Procurement Notes

Verify the specific ordering code against the manufacturer's official documentation to ensure correct package type and tolerance class. Confirm that the component meets all required environmental and electrical specifications for the intended design application before finalizing procurement decisions.

Selection Notes

Select this component for circuits requiring precise low voltage regulation within the specified power dissipation limits. Ensure the operating environment remains within the defined thermal boundaries to maintain performance reliability and prevent exceeding absolute maximum ratings during operation.

Part Context

This part belongs to the 1N4728A to 1N4749A series of voltage regulator diodes manufactured by Nexperia. The series offers various nominal working voltages ranging from 3.3 V to 24 V, all utilizing the same axial leaded glass package format for consistent mechanical integration across different voltage requirements.

Replacement Considerations

Direct replacements must match the 22 V nominal voltage, DO-41 package, and ±5% tolerance. Verify equivalent power dissipation and thermal resistance values when substituting with components from other manufacturers.
