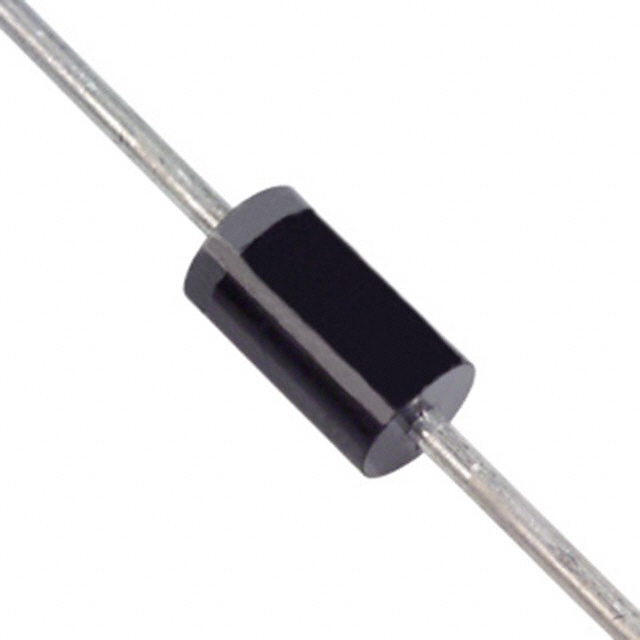

1N4755A-T

$0.20

Description：DIODE ZENER 43V 1W DO41
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:01ff3b8e8455 Category: Single Zener Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ZENER 43V 1W DO41
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Zener (Nom) (Vz)：43 V
Tolerance：±5%
Power - Max：1 W
Impedance (Max) (Zzt)：70 Ohms
Current - Reverse Leakage @ Vr：5 µA @ 32.7 V
Operating Temperature：-65°C ~ 175°C
Mounting Type：Through Hole
Package / Case：DO-204AL, DO-41, Axial
Voltage - Forward (Vf) (Max) @ If：1.2 V @ 200 mA
Grade：-
Qualification：-

Download product information

1N4755A-T

Overview

The 1N4755A-T is a discontinued 1.0W Zener diode manufactured by Diodes Incorporated in the DO-41 glass package. It provides a nominal Zener voltage of 43V with a standard tolerance of ±5%. The device operates within a temperature range of -65°C to +175°C and features a maximum reverse leakage current of 5.0µA at 32.7V. Electrical characteristics include a test current of 6.0mA, a maximum Zener impedance of 70Ω at IZT, and a surge current rating of 110mA for an 8.3ms pulse.

Feature Summary

Utilizes glass passivated die construction for robust performance
Features lead-free finish and RoHS compliance
Includes cathode band marking for polarity identification

Applications

Voltage regulation circuits
Overvoltage protection applications
Reference voltage generation

Procurement Notes

This component is officially marked as obsolete with no alternate part available from the manufacturer. Verification of availability should focus on surplus or secondary market sources rather than direct procurement from Diodes Incorporated. Confirm specific packaging suffixes and manufacturing dates when sourcing from third-party distributors.

Selection Notes

Designers must account for the discontinued status when selecting this component for new products. Verify that existing inventory meets long-term supply requirements. Consider evaluating alternative manufacturers offering similar specifications if future production continuity is required.

Part Context

The 1N4755A belongs to the 1N4728A through 1N4761A series of 1.0W Zener diodes produced by Diodes Incorporated. This series covers a wide voltage range from 3.3V to 75V. The -T suffix indicates tape and reel packaging, typically supplied in quantities of 5,000 units per reel.

Replacement Considerations

Diodes Incorporated has designated this part as obsolete with no official alternate provided. Cross-referencing with other manufacturers may be necessary, but electrical parameters such as impedance and leakage must be verified against original datasheet specifications.
