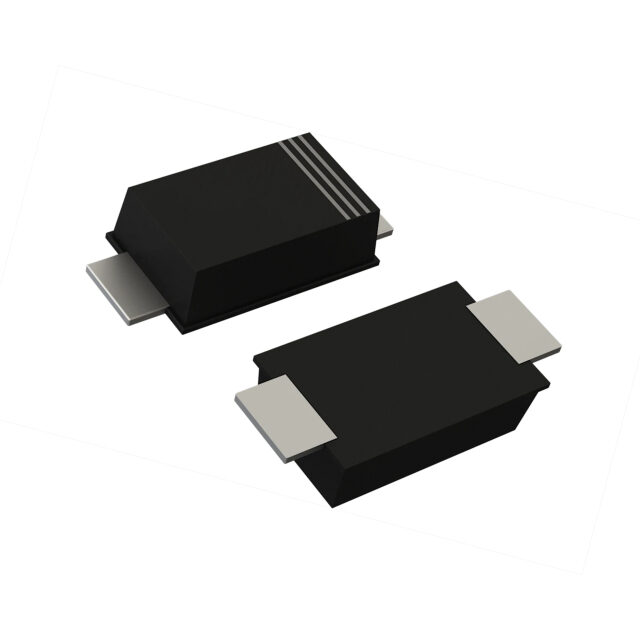

1N5819W

$0.09

Description：40V INDEPENDENT TYPE 1A 900MV@3A
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1a7252df88ec Category: Single Diodes Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：40V INDEPENDENT TYPE 1A 900MV@3A
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：40 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：600 mV @ 1 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：1 mA @ 40 V
Capacitance @ Vr, F：120pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：SOD-123
Supplier Device Package：SOD-123
Operating Temperature - Junction：-55°C ~ 125°C
Grade：-
Qualification：-

Download product information

1N5819W

Overview

The 1N5819W is a Schottky barrier rectifier manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features an average forward current of 1 A and a maximum repetitive peak reverse voltage of 40 V. The device utilizes a metal silicon junction with majority carrier conduction to achieve low power loss and high efficiency. Key electrical characteristics include a low forward voltage drop, high surge capability, and negligible switching losses. Packaged in DO-204AL (DO-41), it operates within a temperature range of -65 °C to +125 °C.

Feature Summary

Metal silicon junction construction enabling majority carrier conduction for minimal power loss
Guardring design providing protection against overvoltage conditions
Extremely fast switching speeds suitable for high frequency applications

Applications

Low voltage, high frequency inverters
Free wheeling diode circuits
Polarity protection systems
Switch mode power supplies

Procurement Notes

Verify the specific manufacturer designation as Shenzhen Slkormicro Semicon Co., Ltd. differs from common industry sources listing STMicroelectronics or onsemi. Confirm RoHS compliance status and package dimensions against the official datasheet before integration. Ensure the component meets all environmental and electrical specifications required for the target application.

Selection Notes

Select this component for designs requiring efficient rectification at low voltages and high frequencies. The DO-41 axial package facilitates through-hole mounting. Consider the 40 V reverse voltage rating and 1 A current capacity when sizing the circuit. Evaluate thermal management requirements given the operating temperature limits and forward voltage characteristics.

Part Context

This part belongs to the standard 1N58xx series of Schottky barrier rectifiers. These devices are widely recognized for their superior performance compared to standard silicon rectifiers in terms of speed and forward voltage drop. The 1N5819 variant specifically targets 40 V applications within this family.
