Product Detailed Parameters
- Description：DIODE SCHOTTKY 40V 50A DO5
- Series：-
- Mfr：GeneSiC Semiconductor
- Package：Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：50A
- Voltage - Forward (Vf) (Max) @ If：700 mV @ 50 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 30 V
- Capacitance @ Vr, F：-
- Mounting Type：Chassis, Stud Mount
- Package / Case：DO-203AB, DO-5, Stud
- Supplier Device Package：DO-5
- Operating Temperature - Junction：-65°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview

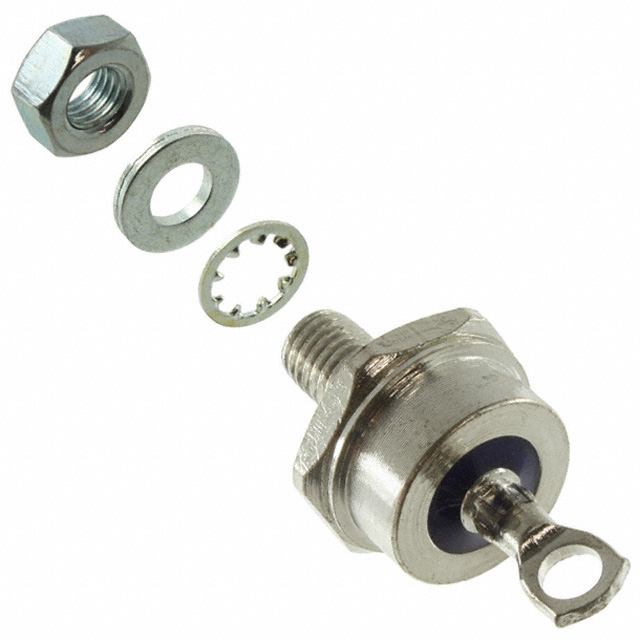

The GeneSiC Semiconductor 1N6098 is a silicon power Schottky diode housed in a DO-5 (DO-203AB) package. It features a maximum repetitive peak reverse voltage of 40 V and an average forward current rating of 50 A per package. The device supports a junction temperature range from -55°C to 150°C. Standard polarity configuration designates the stud as the cathode, while the base serves as the anode.
Feature Summary
- High surge capability for robust transient handling
- Non-electrostatic discharge sensitive construction
- Stud-mounted terminal configuration for thermal management
Applications
- General purpose rectification in power supplies
- Free-wheeling diodes in motor drives
- DC-DC converter output stages
Procurement Notes
Verify the specific part marking against the datasheet to confirm the 40V rating variant. Ensure mounting hardware meets the specified torque requirements for the stud terminal. Confirm that the standard polarity (stud as cathode) aligns with the circuit schematic before integration into the assembly process.
Selection Notes
Select this component when a high-current Schottky rectifier is required in a through-hole stud-mount package. The 40V rating suits low-voltage DC bus applications. Consider the thermal resistance characteristics for heatsink sizing. Verify that the operating environment stays within the specified junction temperature limits for reliable performance.
Part Context
This component belongs to the 1N6097 through 1N6098R series of silicon power Schottky diodes. The series offers voltage options ranging from 30V to 40V. The 'R' suffix indicates reversed polarity where the stud functions as the anode. The 1N6098 specifically denotes the 40V blocking voltage variant within this lineup.
Replacement Considerations
The 1N6097R is a related variant with reversed polarity. Direct substitution requires verifying the circuit orientation matches the stud connection. Other 50A Schottky diodes in similar packages may be considered if electrical ratings are compatible.
