Product Detailed Parameters
- Description：DIODE STANDARD 100V 200MA DO35
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：200mA
- Voltage - Forward (Vf) (Max) @ If：1 V @ 10 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：4 ns
- Current - Reverse Leakage @ Vr：5 µA @ 75 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-204AH, DO-35, Axial
- Supplier Device Package：DO-35
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview

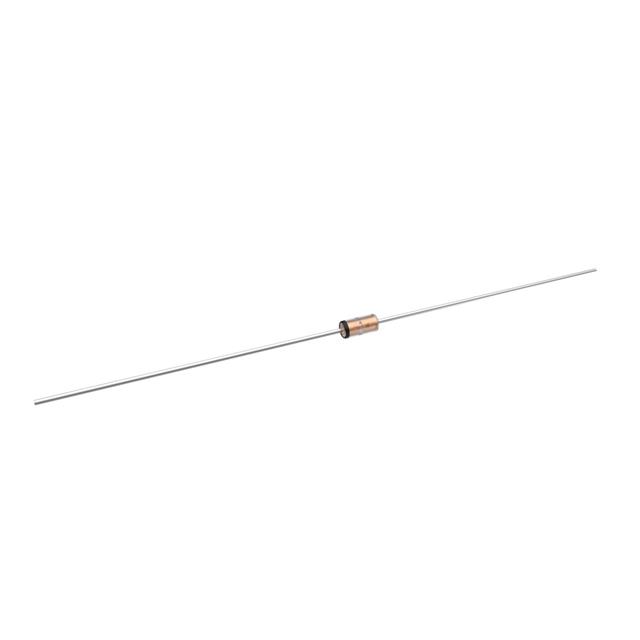

The MCC 1N914-TP is a small signal switching diode designed for high-speed applications. It features a DO-35 axial leaded package and operates with a maximum repetitive peak reverse voltage of 100 V and an average forward rectified current of 200 mA. The device exhibits low current leakage and a typical junction capacitance of 4 pF. It supports a wide operating temperature range from -55 °C to +150 °C, ensuring reliability in demanding environments.
Feature Summary
- Compression bond construction for mechanical stability
- Low current leakage characteristics
- Moisture sensitivity level 1 certification
Applications
- High-speed switching circuits
- Clamping and protection applications
- General purpose rectification
Procurement Notes
Verify the specific datasheet revision when sourcing, as manufacturers may update specifications over time. Confirm that the component matches the required DO-35 package dimensions and electrical ratings for your design. Ensure compliance with RoHS directives if applicable to your manufacturing process. Cross-reference part numbers carefully to distinguish between standard and tape-and-reel variants.
Selection Notes
Select this component for designs requiring fast recovery times and low capacitance in a standard axial package. Compare leakage current specifications against circuit requirements to ensure minimal impact on signal integrity. Evaluate thermal management needs based on the specified power dissipation limits within the enclosed environment.
Part Context
This diode belongs to the 1N914 series, a widely recognized standard for small signal switching. Micro Commercial Components produces this variant using compression bond technology. It serves as a direct replacement for generic 1N914 specifications in legacy and modern electronic designs requiring reliable high-speed performance.
Replacement Considerations
Generic 1N914 equivalents are available from various manufacturers. Verify pinout compatibility and package dimensions before substitution. Ensure substitute parts meet or exceed the 100 V reverse voltage and 200 mA forward current ratings.
