1PGSMC5350 R7G

Single Zener Diodes Overview

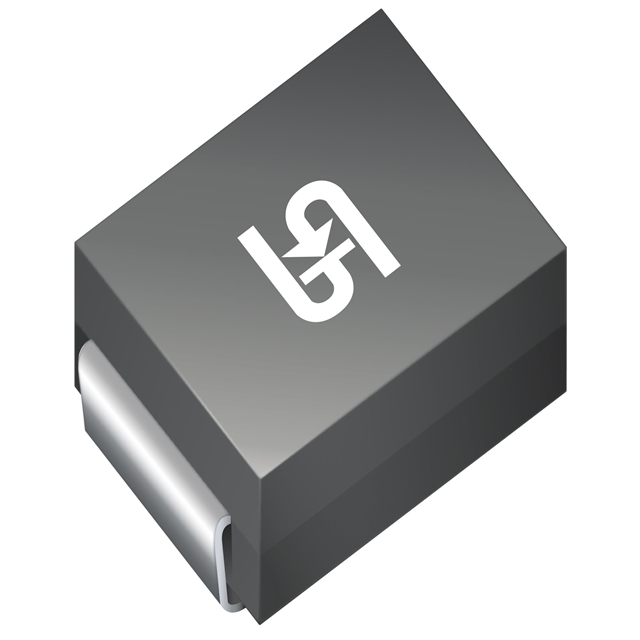

The Taiwan Semiconductor Corporation 1PGSMC5350 R7G is a single-die surface mount Zener diode with a nominal voltage of 13 V and a maximum power dissipation of 5 W. It operates within a junction temperature range of -55 °C to +175 °C and features a 5% tolerance. The device utilizes a DO-214AB (SMC) package, exhibits a typical Zener impedance of 3 Ω at a test current of 100 mA, and maintains a leakage current of 1 μA at 9.9 V.

Single Zener Diodes Feature Summary

• Photo glass passivated chip junction for enhanced stability
• Low inductance design suitable for high-speed switching applications
• Automated placement optimization with moisture sensitivity level 1

Single Zener Diodes Applications

• Switching mode power supply (SMPS)
• On-board DC/DC converter
• Lighting application

Single Zener Diodes Procurement Notes

Verify the specific ordering code suffix against official documentation to confirm packaging details. Confirm RoHS compliance and halogen-free status requirements prior to procurement. Ensure the component meets JESD 201 class 2 whisker test standards for your assembly process.

Single Zener Diodes Selection Notes

Select this component for applications requiring a 13 V regulation point with 5 W power handling capability. The DO-214AB package is appropriate for surface mount designs needing low inductance. Verify thermal derating curves if operating near the maximum junction temperature limit.

Single Zener Diodes Part Context

This part belongs to the 1PGSMC5348–1PGSMC5369 series, which covers Zener voltages from 11 V to 51 V. All devices in this series share identical mechanical data, including the DO-214AB case and matte tin plated leads, differing only in their electrical voltage specifications.

Single Zener Diodes Replacement Considerations

Substitute parts must match the 13 V nominal Zener voltage, 5 W power rating, and DO-214AB package. Verify that alternative components meet the same 3 Ω Zener impedance and 1 μA leakage current specifications.
