1PMT5924BT1G

Single Zener Diodes Overview

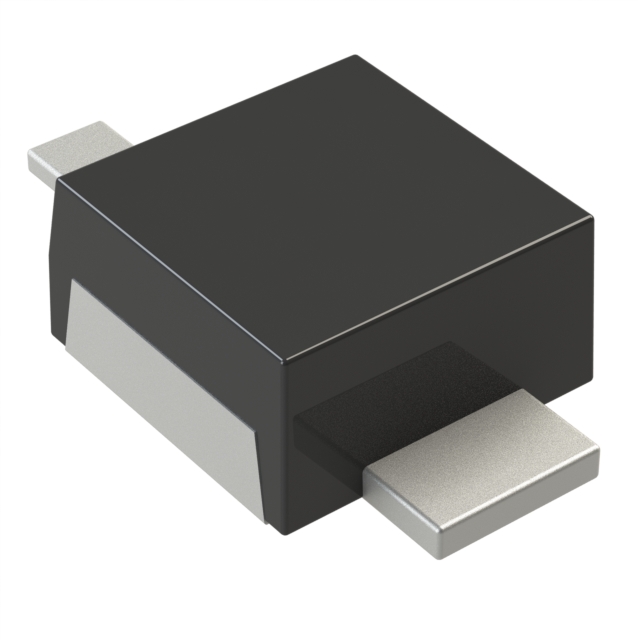

The onsemi 1PMT5924BT1G is a single-channel Zener diode designed for surface-mount applications. It features a nominal Zener voltage of 36V and a maximum power dissipation of 3.2W. The device utilizes the PowerMITE-2 package (Case 457-04) with two pins. Key electrical parameters include a test current of 17mA, a maximum Zener impedance of 17.5 Ω, and a maximum reverse leakage current of 1µA. It operates within a temperature range of -55°C to +150°C.

Single Zener Diodes Feature Summary

• Provides stable voltage regulation in a compact surface-mount PowerMITE-2 package.
• Supports high thermal stability with an operating junction temperature up to +150°C.
• Features low reverse leakage current for efficient circuit performance.

Single Zener Diodes Applications

• Voltage reference circuits
• Overvoltage protection
• General-purpose voltage regulation

Single Zener Diodes Procurement Notes

Verify the specific Zener voltage tolerance and package marking against the official datasheet before procurement. Confirm that the PowerMITE-2 footprint matches the target PCB design. Ensure compliance with RoHS standards if required by the application environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Single Zener Diodes Selection Notes

Select this component when a 36V regulation point is required in a space-constrained surface-mount layout. The 3.2W power rating supports moderate current loads compared to smaller packages. Consider the 17.5 Ω impedance for noise-sensitive applications. Verify thermal management requirements given the high-power density of the PowerMITE case.

Single Zener Diodes Part Context

This component belongs to the 1PMT59xxBT1G series of Zener diodes from onsemi. These devices are engineered for robust performance in industrial and consumer electronics. The PowerMITE package offers a balance between power handling capability and small form factor, suitable for automated assembly processes.

Single Zener Diodes Replacement Considerations

Check for direct substitutes within the same 1PMT59xx series with identical voltage ratings. Verify pinout compatibility and thermal characteristics when considering alternative manufacturers. Ensure any replacement meets the same AEC-Q101 or general reliability standards if applicable.
