1VK1

Overview

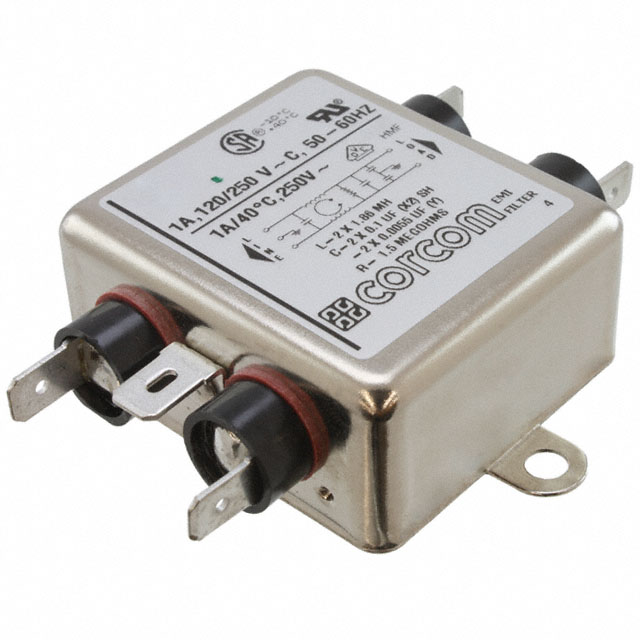

The TE Connectivity Corcom Filters 1VK1 is a single-phase EMI/RFI power line filter designed for commercial applications. It features a flange mount installation style with quick connect terminals rated at 0.250 inches (6.3mm). The component is rated for 1A current and 250VAC voltage, with a maximum leakage current of 1mA. Electrical characteristics include a capacitance of 0.203µF and a minimum inductance of 1.86mH. It operates at standard frequencies of 50Hz or 60Hz.

Feature Summary

• Provides EMI and RFI filtering for single-phase AC power lines
• Features flange mount design for secure panel installation
• Utilizes quick connect terminals for simplified wiring

Applications

• Commercial electronic equipment requiring EMI suppression
• General purpose RFI filtering in AC power circuits
• Industrial control panels operating at 50Hz/60Hz

Procurement Notes

Verify the specific terminal pitch and mounting hole dimensions against your chassis design before procurement. Confirm that the 1A current rating and 250VAC voltage rating meet your system requirements. Check for RoHS compliance status if required by your manufacturing standards. Ensure the quick connect terminal size matches your wire harness connectors to guarantee proper electrical contact and mechanical stability during operation.

Selection Notes

Select this model when a compact, single-phase EMI filter is needed for low-current applications up to 1A. The flange mount style is suitable for direct panel integration where space is limited. Consider the 0.203µF capacitance value for its noise attenuation capabilities. This component is appropriate for environments requiring standard commercial-grade filtering without complex multi-stage configurations.

Part Context

The 1VK1 belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression components. This series offers various form factors including panel mount and chassis mount options. The 1VK1 specifically addresses common mode noise reduction in single-phase AC systems, supporting reliable operation of sensitive electronic loads in commercial and industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
